APC

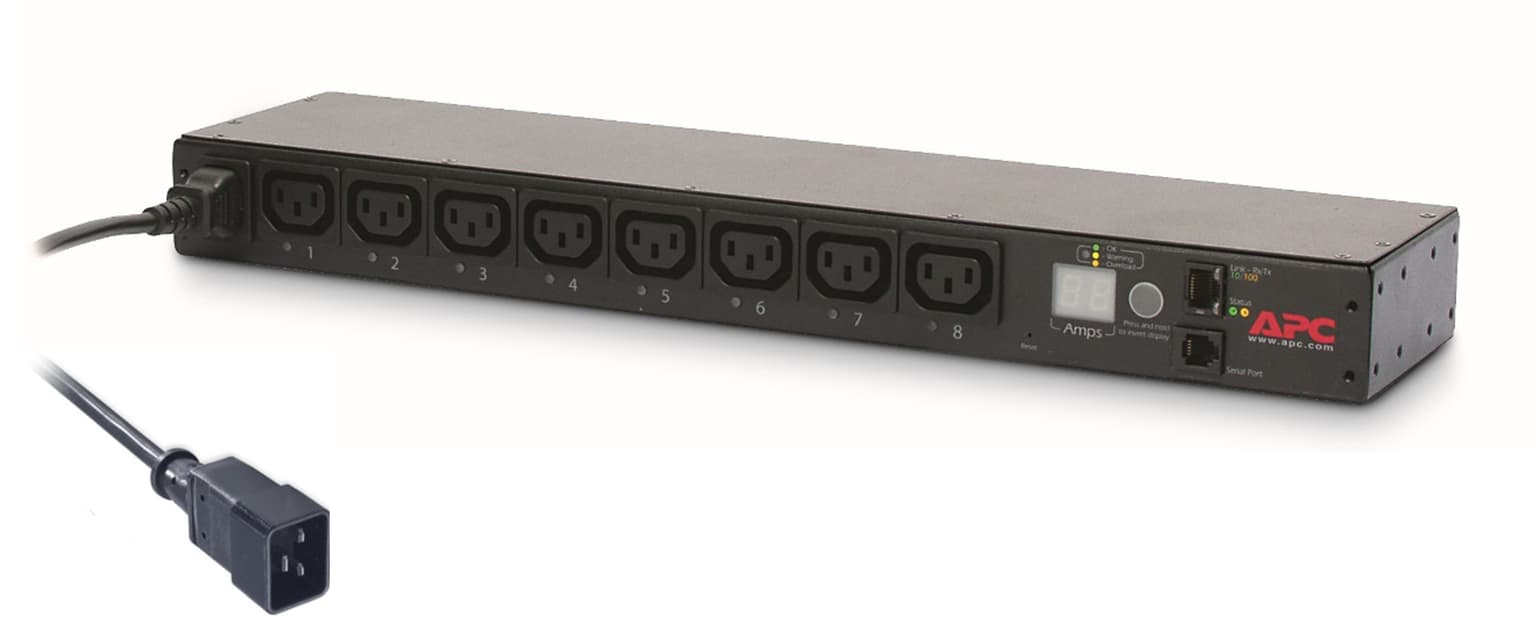

AP7921B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
Power Distribution Units (PDUs)At a glance
Full specification ↓- AC outlets quantity
- 8 AC outlet(s)
- Rack capacity
- 0U/1U
- Colour
- Black
- PDU types
- Metered, Switched
- Mounting
- Horizontal/Vertical
- AC outlet types
- C13 coupler
£1,434.24inc. VAT
£1,195.20 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
APC AP7921B, Metered, Switched, 0U/1U, Horizontal/Vertical, Black, 8 AC outlet(s), C13 coupler
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Key features
- Metered, Switched 0U/1U Black
- 8 AC outlet(s) C13 coupler
- 3680 W
Full specification
37 specifications
- Certification
- cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
- Compliance certificates
- RoHS
- Product colour
- Black
- Mounting
- Horizontal/Vertical
- Rack capacity
- 0U/1U
- PDU types
- Metered, Switched
- Cable length
- 2.5 m
- Outlet control
- Lock-out, Recycle, Turn off, Turn on
- Monitoring
- Current, Power, Voltage
- Non-operating altitude
- 1 - 15000 m
- Operating altitude
- 0 - 3000 m
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -25 - 65 °C
- Operating temperature (T-T)
- 0 - 45 °C
- Input connection type
- IEC-320 C20
- AC outlet types
- C13 coupler
- Power plug
- C20 coupler
- AC outlets quantity
- 8 AC outlet(s)
- Maximum power
- 3680 W
- Maximum total current draw per phase
- 16 A
- Maximum input current per phase
- 16 A
- Load capacity
- 3680 VA
- Nominal output voltage
- 208-230 V
- Maximum current
- 16 A
- AC input frequency
- 50 - 60 Hz
- Nominal input voltage
- 200-230 V
- Weight
- 2.27 kg
- Height
- 44 mm
- Depth
- 108 mm
- Width
- 445 mm
- Total carbon footprint (kg of CO2e)
- 915.89
- Packaging content
- Installation Guide, Rack Mounting Brackets, User Manual
- Package height
- 70 mm
- Package depth
- 343 mm
- Package width
- 470 mm
- Package weight
- 3.45 kg
