APC
Easy UPS On-Line
1000VA/900W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit
Uninterruptible Power Supplies (UPSs)At a glance
Full specification ↓- Form factor
- Rackmount
- Display type
- LCD
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 1 kVA
- Output power
- 900 W
- Waveform
- Sine
£603.36inc. VAT
£502.80 ex VAT
Only 4 leftDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product

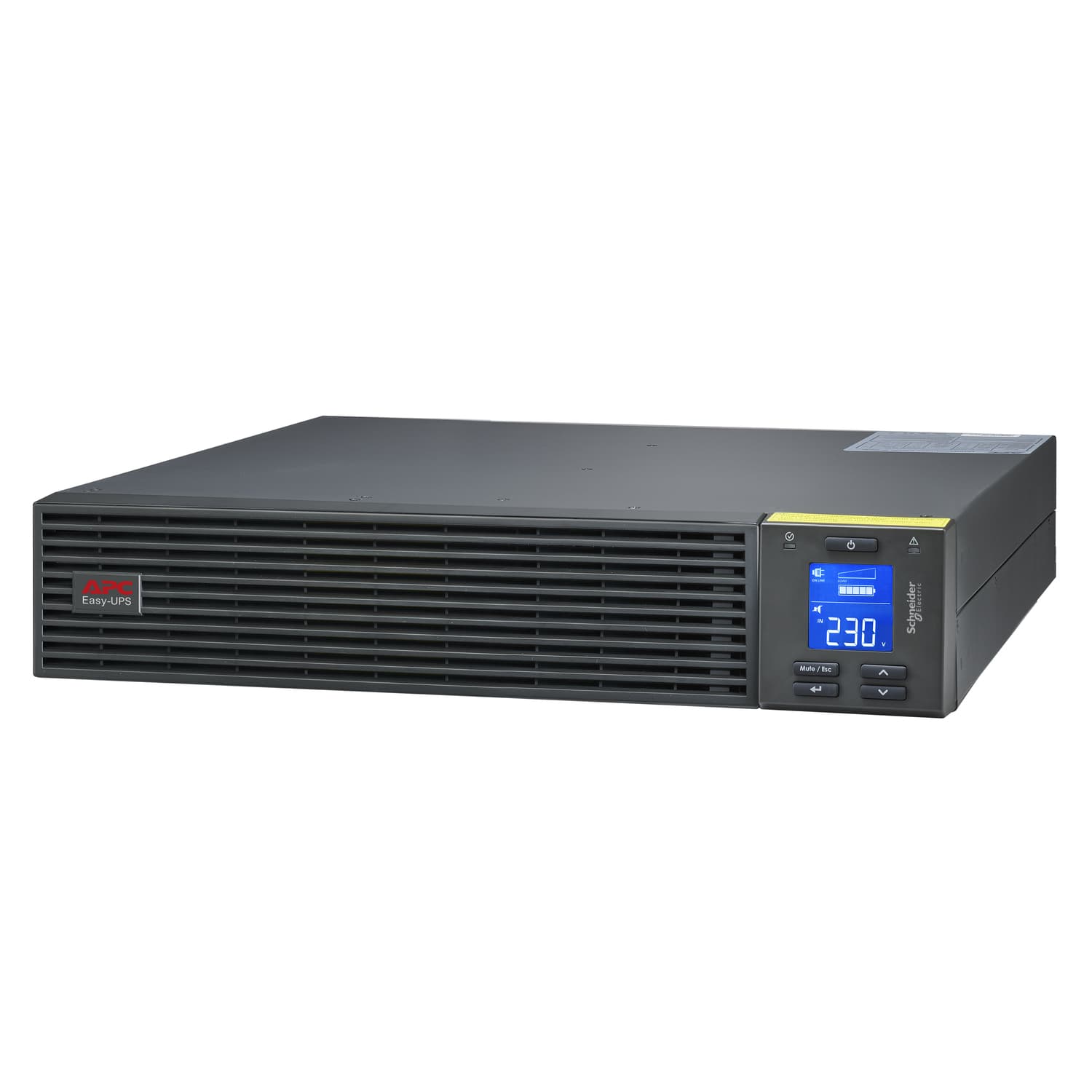

APC Easy UPS On-Line, 1000VA/900W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit, Double-conversion (Online), 1 kVA, 900 W, Sine, 110 V, 285 V
"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions." "The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The SRV UPS is compatible with replacement battery cartridge APCRBCV200." "The UPS is compatible with SRVRK1 rail kit sold separately." "The UPS and the built-in lead-acid battery has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."
Key features
- 1000VA/900W double-conversion on-line pure sine wave 2U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Prolonged battery life with intelligent temperature-compensated charging
- Easy-to-read LCD interface for detailed and accurate information on UPS status
Full specification
74 specifications
- Replacement battery cartridge
- APCRBCV200
- Battery recharge time
- 4 h
- Battery life (max)
- 3 year(s)
- Battery voltage
- 24 V
- Battery technology
- Sealed Lead Acid (VRLA)
- Certification
- CE; UKCA; TISI
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Compliance certificates
- RoHS, REACH, WEEE
- International Protection (IP) code
- IP20
- Display type
- LCD
- Product colour
- Black
- Cable length
- 1.5 m
- Rack capacity
- 2U
- Form factor
- Rackmount
- Detachable power cord
- Yes
- Power source type
- AC
- Audible alarm modes
- Overload alarm, Low battery alarm
- Audible alarm(s)
- Yes
- Surge protection
- Yes
- Noise level
- 50 dB
- Output voltage Total Harmonic Distortion (THD)
- 3%
- Crest factor
- 3:1
- Efficiency
- 88%
- Single-phase input voltage supported
- 230 V
- Number of output phases
- 1
- Number of input phases
- 1
- Surge energy rating
- 945 J
- Output voltage regulation
- 3%
- Output frequency
- 50/60 Hz
- Output operation voltage (max)
- 240 V
- Output operation voltage (min)
- 220 V
- Input frequency
- 40 - 70 Hz
- Input operation voltage (max)
- 285 V
- Input operation voltage (min)
- 110 V
- Waveform
- Sine
- Output power
- 900 W
- Output power capacity
- 1 kVA
- UPS topology
- Double-conversion (Online)
- Non-operating altitude
- 0 - 15000 m
- Operating altitude
- 0 - 3000 m
- Storage relative humidity (H-H)
- 0 - 95%
- Operating relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -20 - 50 °C
- Operating temperature (T-T)
- 0 - 40 °C
- Output voltage
- 230 V
- Mounting
- front; horizontal
- Output connection type
- 3 IEC 60320C13
- Input connection type
- IEC 60320 C14
- RS-232 ports
- 1
- Serial interface
- Yes
- USB 2.0 ports quantity
- 1
- USB port type
- USB Type-B
- USB port
- Yes
- AC outlets quantity
- 3 AC outlet(s)
- Power plug
- C15 coupler
- AC outlet types
- C13 coupler
- Packaging recycled materials
- Recycled cardboard
- Sustainable packaging
- No
- Preferred mounting position
- lower
- Packaging without single use plastic
- No
- Take-back system
- No
- Weight
- 11.5 kg
- Height
- 86 mm
- Depth
- 312 mm
- Width
- 438 mm
- Country of origin
- China
- Customs product code (TARIC)
- 8504409590
- Manual
- Yes
- Cables included
- Output power cable, RS-232, USB cable, Input power cable
- Rack mount kit
- Yes
- Package weight
- 14 kg
- Package height
- 218 mm
- Package depth
- 455 mm
- Package width
- 551 mm
Why choose this
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
Intelligent Card Slot
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Full color text and mimic diagrams that easily display modes of operation, systems parameters and alarms.
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Registering license keys unlocks the features of the data center management software.
Automatically starts up the connected equipment upon the return of utility power.
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Minimizes installation costs by enabling the use of smaller generators and cabling.
Prevents unauthorized access to the UPS.
