APCat417949

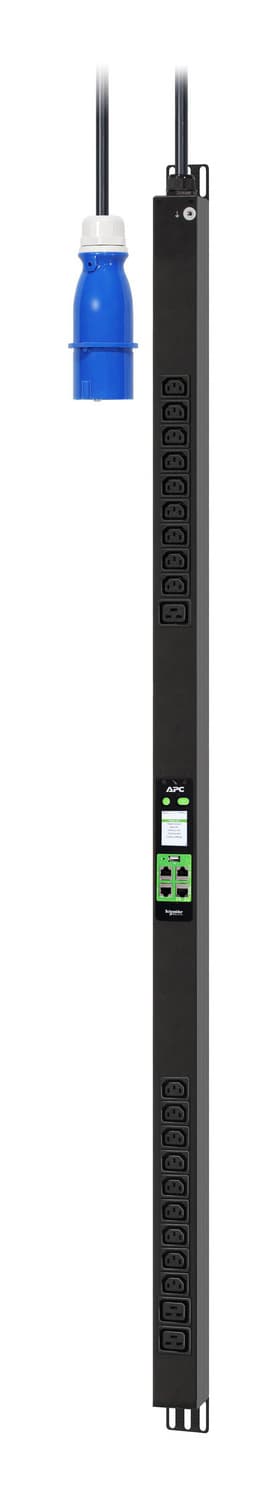

APC Easy PDU Metered Zero U 32A 230V (20)C13 (4)C19 IEC309
Power Distribution Units (PDUs)Low stock
£836.64
£365.16
inc. VAT
1 / 9
APC

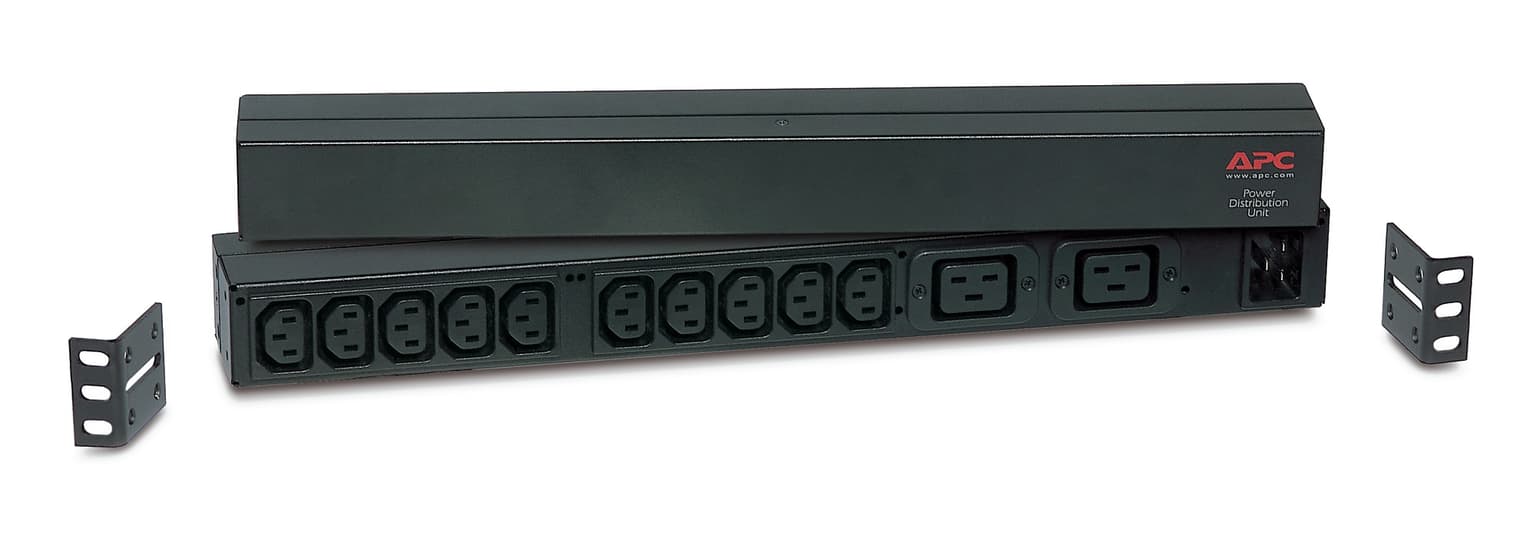

RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC
outlet(s) 0U/1U Black
Power Distribution Units (PDUs)At a glance
Full specification ↓- PDU types
- Basic
- AC outlets quantity
- 12 AC outlet(s)
- Rack capacity
- 0U/1U
- Colour
- Black
- Type
- Single-phase
- Mounting
- Horizontal/Vertical
£365.16inc. VAT
£304.30 ex VAT
Only 4 leftDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
APC RACK PDU BASIC 1 U 16A 230V, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 12 AC outlet(s)
Description:
APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities
Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities
Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
Output Voltage(s) (main only) - 120, 208, 230 V
Maximum Total Current Draw per Phase - 16 A
Output Connections - (10)IEC 320 C13; (2)IEC 320 C19
Always on Outlets - 12
Overload Protection
Input:
Nominal input voltage - 120, 208, 230
Input frequency (Hz) - 50/60 Hz
Input Connection Type - IEC-320 C20
Cord Length 8.2 feet ( 2.5 meters )
Acceptable Input Voltage - 90-250 VAC
Maximum Line Current per phase - 16.0 A
Maximum Input Current per phase - 16.0 A
Load Capacity - 3680
Key features
- Single-phase Basic 0U/1U Black
- 12 AC outlet(s) C13 coupler, C19 coupler
- 3680 W
Full specification
21 specifications
- Product colour
- Black
- Mounting
- Horizontal/Vertical
- Rack capacity
- 0U/1U
- Type
- Single-phase
- PDU types
- Basic
- Cable length
- 2.5 m
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -25 - 65 °C
- Operating temperature (T-T)
- 0 - 45 °C
- I/O ports
- Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20
- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- C20 coupler
- AC outlets quantity
- 12 AC outlet(s)
- Maximum power
- 3680 W
- Maximum input current per phase
- 16 A
- Load capacity
- 3680 VA
- Weight
- 980 g
- Height
- 44.5 mm
- Depth
- 57.2 mm
- Width
- 447 mm
