APC

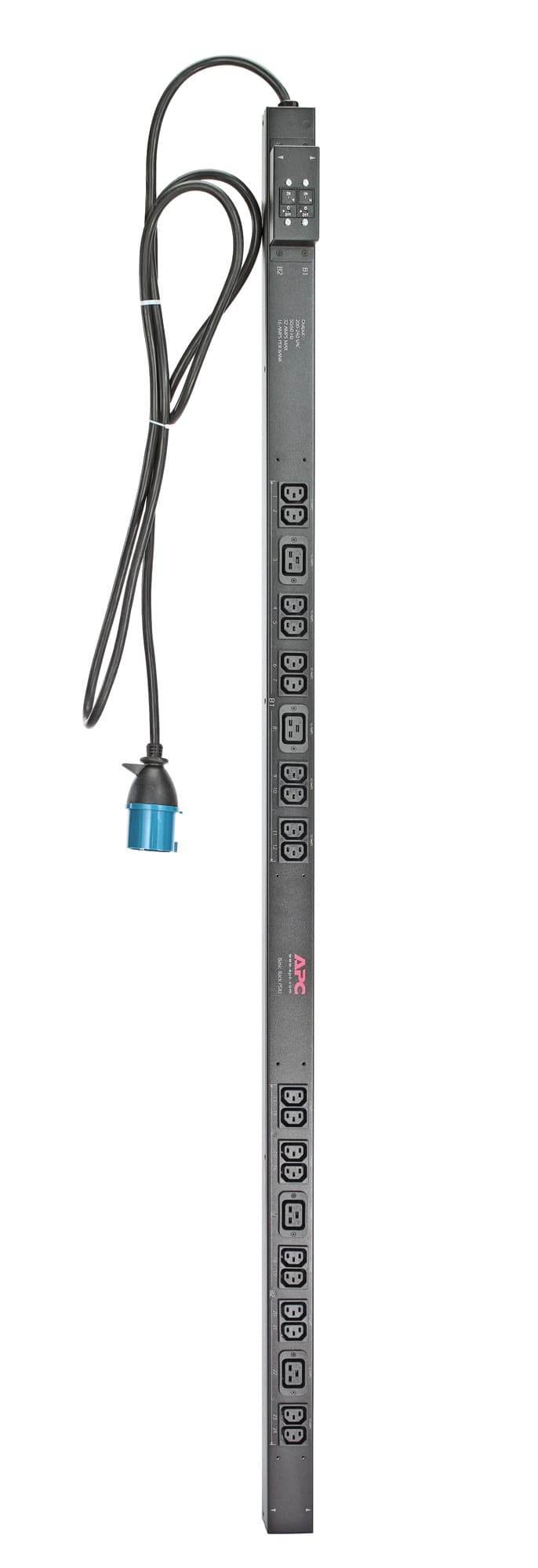

RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power distribution
unit (PDU) 24 AC outlet(s) 0U Black
Power Distribution Units (PDUs)At a glance
Full specification ↓- PDU types
- Basic
- AC outlets quantity
- 24 AC outlet(s)
- Colour
- Black
- Type
- Single-phase
- Mounting
- Vertical
- Rack capacity
- 0U
£416.03inc. VAT
£346.69 ex VAT
Only 2 leftDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19, Basic, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Key features
- Single-phase Basic 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 7680 W
Full specification
31 specifications
- Product colour
- Black
- Mounting
- Vertical
- Rack capacity
- 0U
- Type
- Single-phase
- PDU types
- Basic
- Cable length
- 3050 m
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- 0 - 45 °C
- Operating temperature (T-T)
- -25 - 65 °C
- Output connections
- (20) IEC 320 C13 (4) IEC 320 C19
- Input connection type
- IEC 309 32A
- I/O ports
- (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A
- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- IEC 60309
- AC outlets quantity
- 24 AC outlet(s)
- Maximum power
- 7680 W
- Maximum total current draw per phase
- 32 A
- Maximum input current per phase
- 32 A
- Load capacity
- 7680 VA
- Output voltage
- 230 V
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V
- Weight
- 5.57 kg
- Height
- 1619 mm
- Depth
- 44 mm
- Width
- 56 mm
- Package height
- 2134 mm
- Package depth
- 127 mm
- Package width
- 152 mm
- Package weight
- 6.48 kg
