APCat192472
APC Service Bypass PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19
Maintenance Bypass Panels (MBPs)In stock
£534.24
£981.12
inc. VAT
1 / 4
APC
Service Bypass Panel- 230V
32A, BBM, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13
Maintenance Bypass Panels (MBPs)At a glance
Full specification ↓- Input connections
- IEC 60320 C20
- AC input voltage
- 230 V
- Compliance certificates
- RoHS, REACH, WEEE
- Certification
- CSA; GOST
- Rack capacity
- 2U
- Operating relative humidity (H-H)
- 0 - 95%
£981.12inc. VAT
£817.60 ex VAT
Only 1 leftDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
APC Service Bypass Panel- 230V, 32A, BBM, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13, 2U, China, IEC 60320 C20, 230 V, 230 V, RoHS, REACH, WEEE

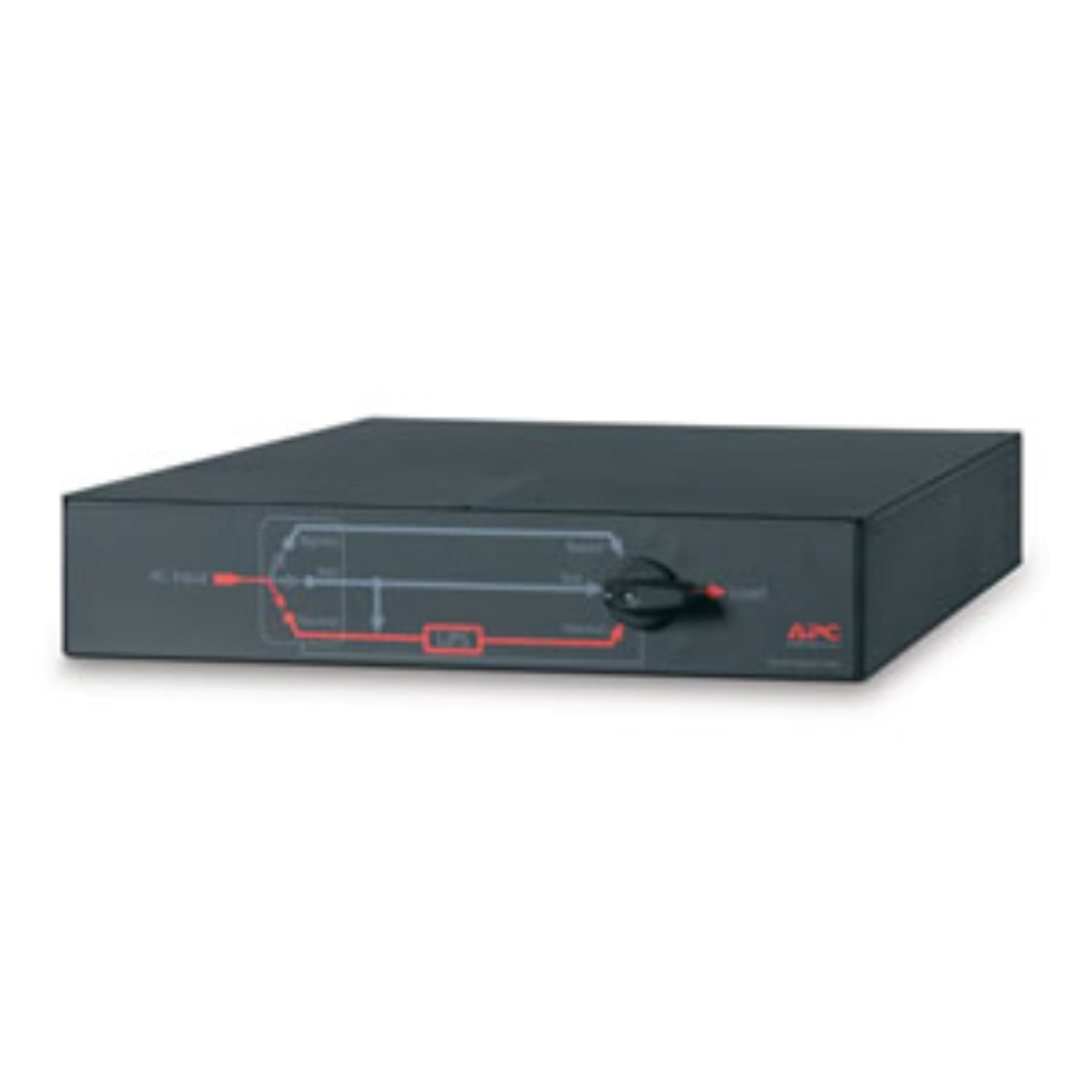

The APC SBP5000RMI2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (8) IEC C13, (2) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty.
Key features
- Supports up to 32A, suitable for high-demand applications
- Provides 2 C19 and 8 C13 output connectors for flexible power distribution
- Features a bypass switch for safe maintenance
- Designed for rack installation, saving space in data centers
Full specification
21 specifications
- Certification
- CSA; GOST
- Compliance certificates
- RoHS, REACH, WEEE
- Country of origin
- China
- Rack capacity
- 2U
- Operating relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- -20 - 50 °C
- Input connections
- IEC 60320 C20
- AC input voltage
- 230 V
- AC output voltage
- 230 V
- Mounting
- front
- Packaging recycled materials
- Recycled cardboard
- Sustainable packaging
- No
- SCIP number
- 7a19864b-8bf5-40ac-85e8-7678b0910185
- Preferred mounting position
- lower
- Packaging without single use plastic
- No
- Take-back system
- No
- Weight
- 11.4 kg
- Height
- 89 mm
- Depth
- 660 mm
- Width
- 432 mm
- Customs product code (TARIC)
- 8537109899
Downloads
Why choose this
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Load test port provides simple connection for full testing of a Symmetra PX UPS
Related products

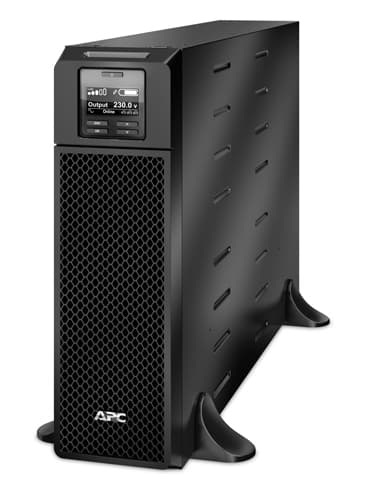

APC Smart-UPS On-Line, 5kVA, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit
