APC

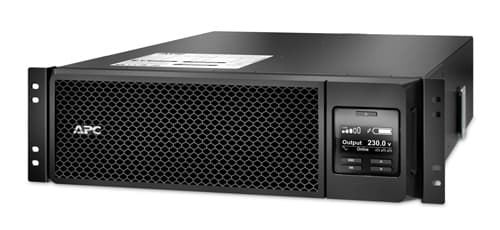

Smart-UPS On-Line
5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/ rail kit
Uninterruptible Power Supplies (UPSs)At a glance
Full specification ↓- Form factor
- Rackmount
- AC outlet types
- Hard Wire 3-wire (2PH + G)
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 5 kVA
- Output power
- 4500 W
- Waveform
- Sine
£8,036.64inc. VAT
£6,697.20 ex VAT
Only 1 leftDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/ rail kit, Double-conversion (Online), 5 kVA, 4500 W, Sine, 100 V, 275 V
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Key features
- Double-conversion (Online)
- 5 kVA 4500 W
- Waveform: Sine
- Sealed Lead Acid (VRLA)
- Rackmount Black
Full specification
65 specifications
- Cold start
- Yes
- Automatic battery test
- Yes
- Hot-swap battery
- Yes
- Battery recharge time
- 1.5 h
- Battery life (max)
- 5 year(s)
- Typical backup time at half load
- 11.8 min
- Typical backup time at full load
- 4 min
- Number of batteries supported
- 1
- Battery capacity
- 845 VAh
- Battery technology
- Sealed Lead Acid (VRLA)
- Certification
- REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IRAM, NOM, RCM, UL
- Compliance certificates
- RoHS
- International Protection (IP) code
- IP20
- LED indicators
- Status
- Display type
- LCD
- Product colour
- Black
- Rack capacity
- 3U
- Form factor
- Rackmount
- Auto-restart
- Yes
- Audible alarm(s)
- Yes
- Surge protection
- Yes
- Noise level
- 55 dB
- Emergency Power Off (EPO)
- Yes
- Crest factor
- 3:1
- Efficiency
- 93.8%
- Surge energy rating
- 480 J
- Output frequency regulation
- 50/60 Hz
- Output operation voltage (max)
- 240 V
- Output operation voltage (min)
- 220 V
- Input frequency
- 40 - 70 Hz
- Input operation voltage (max)
- 275 V
- Input operation voltage (min)
- 100 V
- Waveform
- Sine
- Output power
- 4500 W
- Output power capacity
- 5 kVA
- UPS topology
- Double-conversion (Online)
- Non-operating altitude
- 0 - 15000 m
- Operating altitude
- 0 - 3000 m
- Storage relative humidity (H-H)
- 0 - 95%
- Operating relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -15 - 45 °C
- Operating temperature (T-T)
- 0 - 40 °C
- Output connections
- 1x Hard Wire 3-wire (2PH + G) 1x Hard Wire 3-wire (H N + G)
- Battery type
- APCRBC140
- Number of phases
- 3
- SmartConnect port
- No
- SmartSlot
- Yes
- Serial interface type
- RJ-45
- Serial interface
- Yes
- USB port
- Yes
- Power plug
- Hardwire
- AC outlet types
- Hard Wire 3-wire (2PH + G)
- Sustainability certificates
- ENERGY STAR
- Weight
- 55.8 kg
- Height
- 130 mm
- Depth
- 719 mm
- Width
- 432 mm
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 8442.38
- Products per pallet
- 6 pc(s)
- Management card included
- Yes
- Package weight
- 68 kg
- Package height
- 330 mm
- Package depth
- 960 mm
- Package width
- 610 mm
