ARCTIC

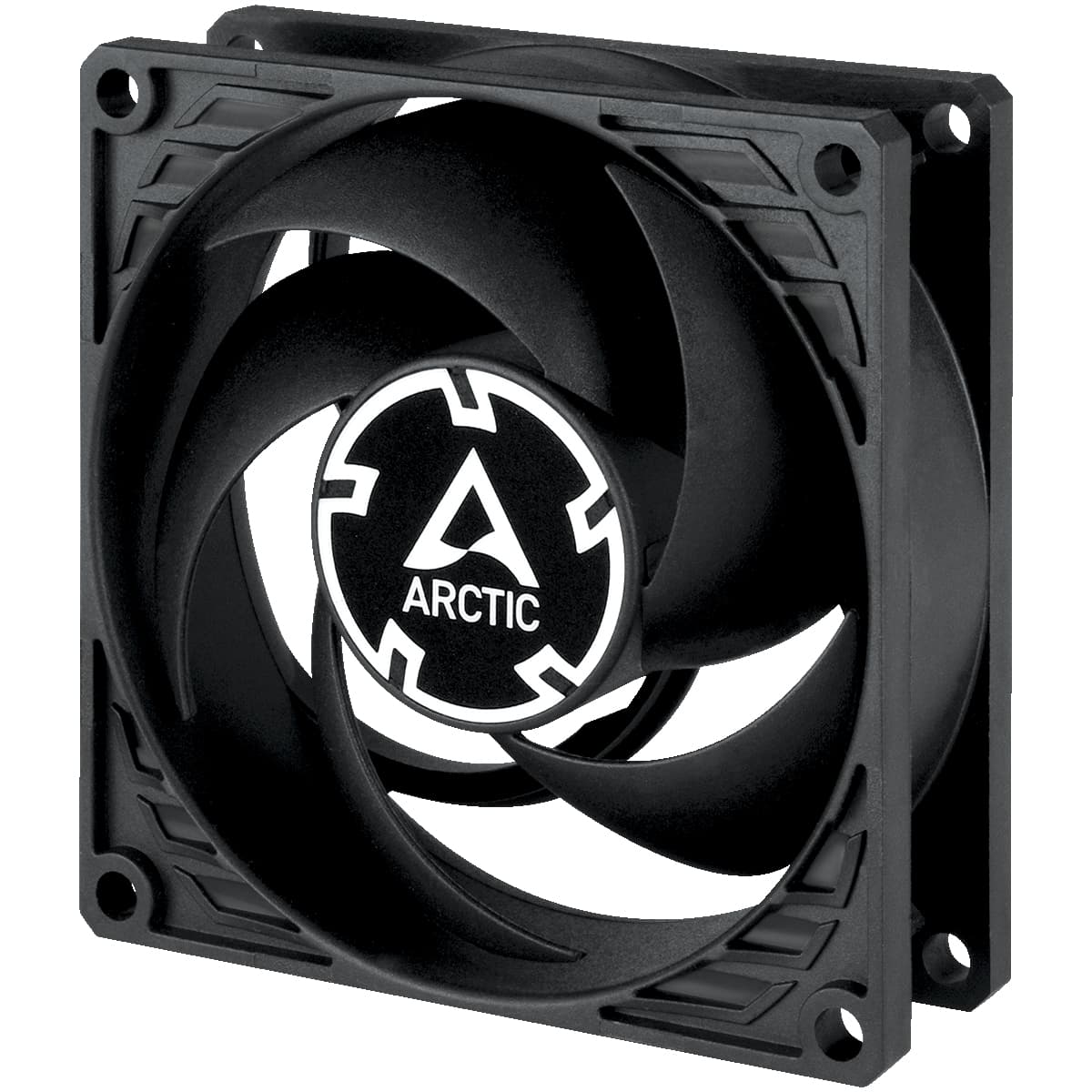

P8 Max - High-Performance
80 mm PWM Fan
Computer Cooling SystemsAt a glance
Full specification ↓- Height
- 80 mm
- Type
- Fan
- Fan diameter
- 8 cm
- Noise level
- 0.6 sone
- Airflow
- 67.96 m³/h
- Colour
- Black
£5.11inc. VAT
£4.26 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
ARCTIC P8 Max - High-Performance 80 mm PWM Fan, Fan, 8 cm, 0.6 sone, 67.96 m³/h, Black
Key features
- Computer case Fan 8 cm
- 40 cfm Dual ball bearing
- Pulse-width modulation (PWM) support
- 80 x 80 x 25 mm 84 g
- Black
- 1 pc(s)
Full specification
36 specifications
- Display type
- Not applicable
- Rack capacity
- 2U
- Fan connector
- 4-pin
- Illumination LED
- No
- Number of fan blades
- 5
- Number of fans
- 1 fan(s)
- Product colour
- Black
- Country of origin
- Hong Kong
- Operating temperature (T-T)
- 0 - 40 °C
- Fan's mean time to failure (MTTF)
- 500000 h
- Fan speed (max)
- 5000 RPM
- Fan speed (min)
- 500 RPM
- Fan static pressure
- 5.3 mmH2O
- Quantity per pack
- 1 pc(s)
- Fan bearing technology
- Double ball bearing
- Bearing type
- Dual ball bearing
- Pulse-width modulation (PWM) support
- Yes
- Airflow
- 67.96 m³/h
- Maximum airflow
- 40 cfm
- Noise level
- 0.6 sone
- Fan diameter
- 8 cm
- Type
- Fan
- Suitable location
- Computer case
- Fan voltage
- 12 V
- Fan current
- 0.19 A
- Starting voltage
- 3.2 V
- Package weight
- 89 g
- Package height
- 26 mm
- Package depth
- 82.5 mm
- Package width
- 82.5 mm
- Cable length
- 0.4 m
- Fan weight
- 84 g
- Fan dimensions (W x D x H)
- 80 x 80 x 25 mm
- Height
- 80 mm
- Screws included
- Yes
- Mounting kit
- Yes
Downloads
Why choose this
Powerful Cooling
The P8 Max is a powerful fan with 500 to 5000 rpm.The fan delivers a static pressure of 5.3 mmH2O and generates an airflow of up to 40 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is extremely efficient at 0.19 A. The P8 Max is ideal for 2U server racks, which often require a high airflow to effectively dissipate heat. In addition, it has a 0 dB mode for silent operation in IDLE.
Extremely Wide Speed Range
The P8 Max enables precise fan speed (500 to 5000 rpm) via pulse width modulation control, which can be adapted to the individual cooling requirements. The P8 Max enables silent operation when only a low airflow is required and provides a high performance level if needed.
Low Power Consumption
The P8 Max is distinguished by its extremely high efficiency. At a speed of 3000 rpm and a voltage of 12 volts, it requires only 0.669 watts, which corresponds to a current of 0.06 amps.
Optimised for High Static Pressure
The P8 Max delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P8 Max is also specially suitable for use on heat sinks, radiators, pinholes and filters.
Optimal for 2U Server Rack
Server cases such as 2U racks usually have a high component density, which means a high airflow is needed to effectively dissipate heat. A high static pressure capacity is therefore important to direct the airflow through the tight ducts inside the case. The P8 Max is ideal for 2U rack cases with 2-height units.
