ARCTIC

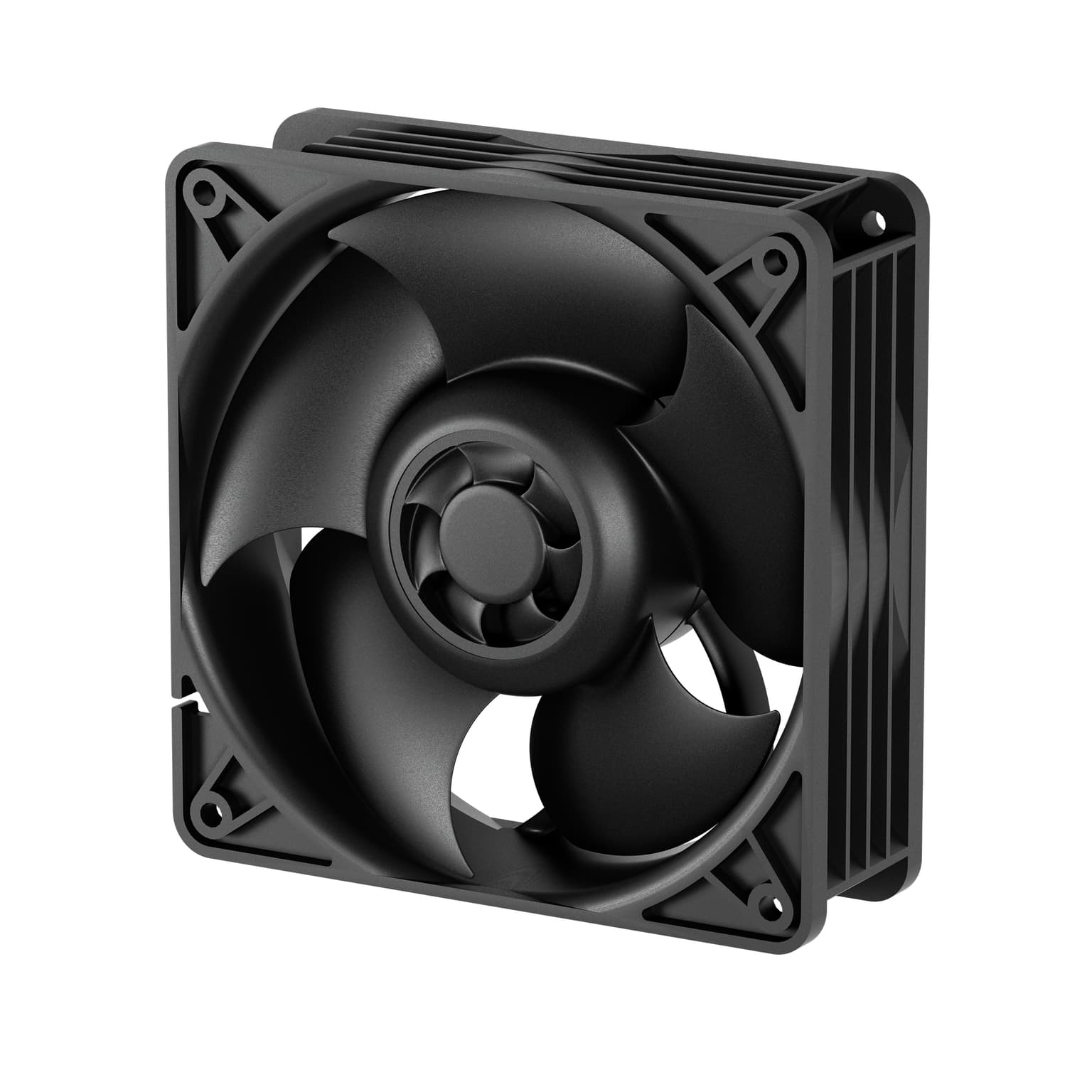

S12038-4K 120 mm 4k rpm Server Fan
Computer Cooling SystemsAt a glance
Full specification ↓- Height
- 120 mm
- Type
- Fan
- Fan diameter
- 12 cm
- Rotational speed (min)
- 600 RPM
- Rotational speed (max)
- 4000 RPM
- Airflow
- 180 m³/h
£8.81inc. VAT
£7.34 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
ARCTIC S12038-4K 120 mm 4k rpm Server Fan, Fan, 12 cm, 600 RPM, 4000 RPM, 180 m³/h, Black
Workstation & Server Cooling
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
Key features
- Computer case Fan 12 cm 4000 RPM
- 106 cfm 11.45 mmH2O Dual ball bearing
- Pulse-width modulation (PWM) support
- Black
- 1 pc(s)
Full specification
32 specifications
- Display type
- Not applicable
- Fan connector
- 4-pin
- Illumination LED
- No
- Number of fans
- 1 fan(s)
- Product colour
- Black
- Operating temperature (T-T)
- -10 - 70 °C
- Quantity per pack
- 1 pc(s)
- Bearing type
- Dual ball bearing
- Pulse-width modulation (PWM) support
- Yes
- Maximum air pressure
- 11.45 mmH2O
- Airflow
- 180 m³/h
- Maximum airflow
- 106 cfm
- Rotational speed (max)
- 4000 RPM
- Rotational speed (min)
- 600 RPM
- Fan diameter
- 12 cm
- Type
- Fan
- Suitable location
- Computer case
- Rated current
- 0.33 A
- Maximum current
- 0.6 A
- Starting voltage
- 3.1 V
- Rated voltage
- 12 V
- Package weight
- 362 g
- Package height
- 43 mm
- Package depth
- 125 mm
- Package width
- 125 mm
- Cable length
- 0.3 m
- Weight
- 320 g
- Height
- 120 mm
- Depth
- 38 mm
- Width
- 120 mm
- Number of screws
- 4
- Screws included
- Yes
Downloads
Why choose this
New Standard in Energy Efficiency
For the same performance, the S12038 consumes 12 % less than the next best competitor, improving the energy efficiency of your server. The reduction of the power consumption is the result of months of motor optimization by ARCTIC engineers with the aim to increase the IT equipment efficiency.<br><br>Test Setup<br>Fan on Freezer 4U heat sink on 400 W heating element; fan speed set so that the temperature of the heating element is constantly 20 °C above the ambient temperature.
Wide Range of Speeds (600 to 4000 rpm)
The S12038-4K features a wide range of speeds from 600 to 4000 rpm, which can be controlled either via PWM or voltage regulation.. This wide range enables precise adjustment of the fan to the specific requirements of the server, ensuring efficient cooling performance under different operating conditions. The fan is equipped with a standard 4-pin connector, which also allows connection to 2-pin or 3-pin headers. The 30 cm long cable offers additional flexibility in fan placement.
Active Cooling for Extended Motor Lifespan
A 10 °C lower motor temperature roughly doubles the service life. The motor of the S12038-4K is not only particularly efficient, but is also actively cooled by an additional impeller in the fan hub.<br><br>To ensure a long service life in particularly dusty environments, a sticker to cover the fan hub impeller is included in the packaging.
Ideal for Server Environments
Especially in server environments, fans with a high pressure are required to enable sufficient air circulation in the often tightly packed enclosures. The S12038-4K fits into server cases from 3U and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation.
