be quiet!

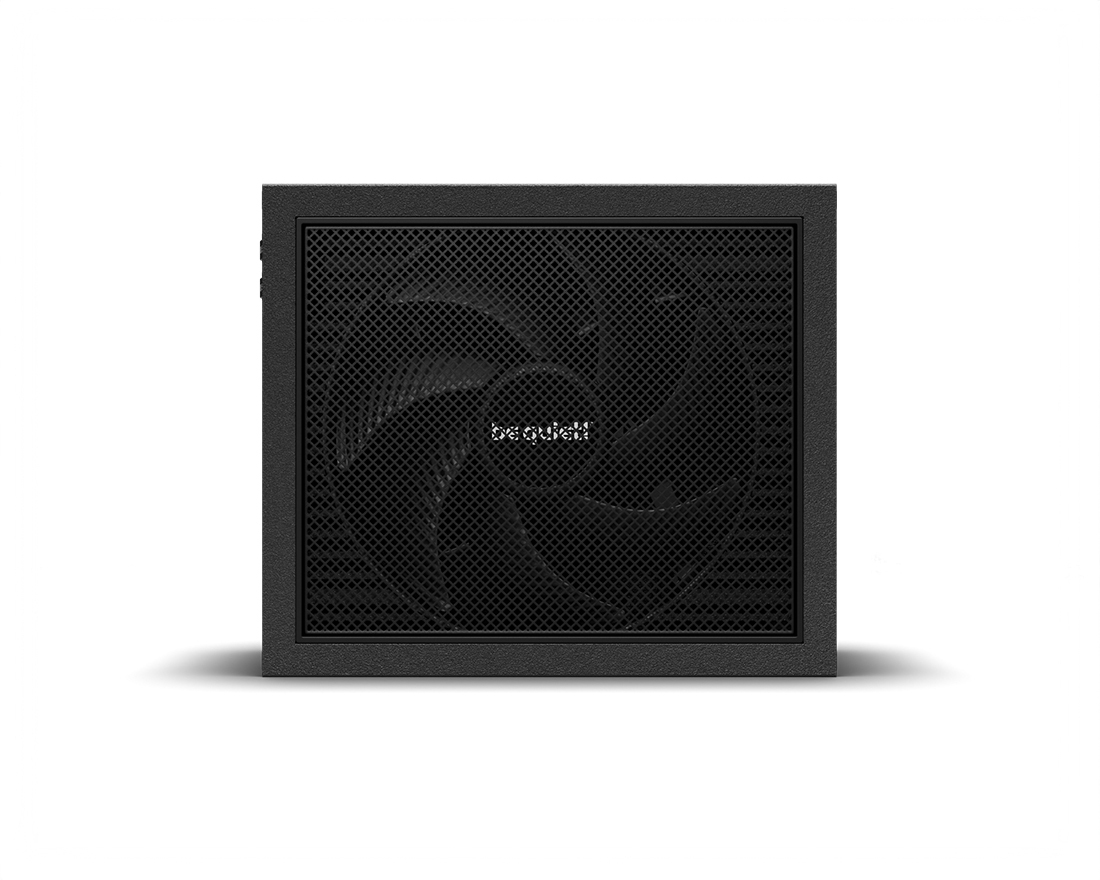

Dark Power 14
850 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
Power Supply UnitsAt a glance
Full specification ↓- Power
- 850 W
- Rating
- 80 PLUS Titanium
- Motherboard power connector
- 20+4 pin ATX
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Peak power
- 950 W
£182.88inc. VAT
£152.40 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
be quiet! Dark Power 14 850 W - 80 Plus Titanium, 850 W, 100 - 240 V, 950 W, 50/60 Hz, 10 A, 5 A
No compromise silence and performance
Dark Power 14 850W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.
Dark Power 14 850W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.
Key features
- 80 PLUS® Titanium efficiency (up to 95.57 %)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector
- Active and semi-passive cooling can be selected with the push of a button
- Aluminum heat sink to support the semi-passive cooling concept and improve the longevity of the components
- Silent Wings fan for virtually inaudible operation
- Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency
- Button to switch between single and multi-rail operation
- Full-mesh front with funnel-shaped air inlet upholds the high air circulation abilities
- Modular cable management for maximum convenience
Full specification
75 specifications
- Compliance certificates
- CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
- On/off switch
- Yes
- On/off fan switch
- Yes
- Illumination
- No
- Fan speed
- 0 - 2100 RPM
- Number of fans
- 1 fan(s)
- Fan diameter
- 13.5 cm
- Cooling type
- Active
- Product colour
- Black
- Operating temperature (T-T)
- 0 - 40 °C
- Cable ties included
- Yes
- Screws included
- Yes
- Mean time between failures (MTBF)
- 100000 h
- Bearing technology
- FDB
- Noise level
- 16 dB
- EPS version
- 2.92
- ATX version
- 3.1
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
- 80 PLUS certification
- 80 PLUS Titanium
- Cabling type
- Fully-Modular
- PCI Express connector
- Yes
- ATX power connector (20+4 pin)
- Yes
- CPU power cable length
- 70 cm
- CPU power connector (4+4 pin)
- Yes
- PCI Express power cable length
- 60 cm
- PCI Express power connectors (12-pin)
- 1
- PCI Express power connectors (6+2 pin)
- 4
- EPS power connector (4+4 pin)
- Yes
- EPS power connector (8-pin)
- Yes
- Peripheral (Molex) power cable length
- 900,1050 mm
- Peripheral (Molex) power connectors (4-pin)
- 2
- Number of SATA power cables
- 4
- SATA power cable length
- 600,750,900,1050 mm
- Number of SATA power connectors
- 13
- Motherboard power cable length
- 60 cm
- Motherboard power connector
- 20+4 pin ATX
- Power protection features
- Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
- Efficiency
- 93.8%
- Hold time
- 20.7 ms
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.5 A
- Max output current (+5V)
- 24 A
- Max output current (+12V4)
- 35 A
- Max output current (+12V3)
- 35 A
- Max output current (+12V2)
- 30 A
- Max output current (+12V1)
- 30 A
- Max output current (+3.3V)
- 24 A
- Combined power (+5V)
- 120 W
- Combined power (+12V)
- 850 W
- Combined power (+3.3V)
- 120 W
- Number of +12V rail(s)
- 4
- Power factor
- 0.98
- Maximum input current (@220V)
- 5 A
- Maximum input current (@110V)
- 10 A
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Peak power
- 950 W
- Total power
- 850 W
- Sustainability certificates
- ENERGY STAR, ErP, Triman
- Weight
- 2.2 kg
- Height
- 86 mm
- Depth
- 175 mm
- Width
- 150 mm
- Shipping (inner) case width
- 36.8 cm
- Shipping (inner) case length
- 52.8 cm
- Shipping (inner) case height
- 26 cm
- Products per shipping (inner) case
- 4 pc(s)
- Shipping (inner) case net weight
- 19.3 kg
- Package weight
- 3.5 kg
- Package height
- 355 mm
- Package depth
- 126 mm
- Package width
- 230 mm
- Manual languages
- Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
- Manual
- Yes
Delivery & returns
- Delivery
- UK delivery direct from distributor stock. Delivery details
- Returns
- 14 days to change your mind under your statutory cancellation rights. Returns policy
- Warranty
- 10-year manufacturer’s warranty
- Payment
- Secure checkout powered by Stripe.
