be quiet!
Dark Power Pro 13 |
1600W power supply unit 20+4 pin ATX ATX Black
Power Supply UnitsAt a glance
Full specification ↓- Motherboard power connector
- 20+4 pin ATX
- Colour
- Black
- Power
- 1600 W
- AC input voltage
- 115 - 240 V
- Peak power
- 1700 W
- AC input frequency
- 50 - 60 Hz
£355.73inc. VAT
£296.44 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
be quiet! Dark Power Pro 13 | 1600W, 1600 W, 115 - 240 V, 1700 W, 50 - 60 Hz, 15 - 9 A, 150 W

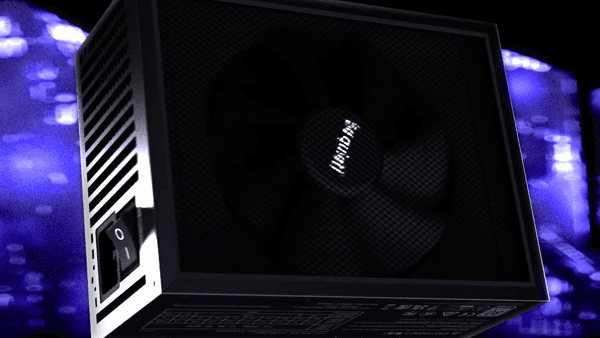

CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.1 compatibility it is predetermined as the ATX 3.1 power supply for your next-gen graphics card.
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.1 compatibility it is predetermined as the ATX 3.1 power supply for your next-gen graphics card.
Key features
- 80 PLUS Titanium efficiency (up to 94.5%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
- Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
- Full mesh PSU front with funnel-shaped air inlet
- Overclocking key switches between six 12V rails and one massive 12V rail
- Japanese 105°C capacitors ensure highest stability and reliability
- 2 PCIe 5.1 12V-2x6 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUs
Full specification
68 specifications
- Compliance certificates
- CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
- Illumination
- No
- Number of fans
- 1 fan(s)
- Fan diameter
- 13.5 cm
- Cooling type
- Active
- Product colour
- Black
- Mean time between failures (MTBF)
- 100000 h
- Bearing technology
- FDB
- Noise level
- 31.1 dB
- EPS version
- 2.92
- ATX version
- 3.1
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
- 80 PLUS certification
- 80 PLUS Titanium
- Cabling type
- Fully-Modular
- PCI Express connector
- Yes
- ATX power connector (20+4 pin)
- Yes
- CPU power cable length
- 70 cm
- PCI Express power cable length
- 60 cm
- PCI Express power connectors (6+2 pin)
- 6
- EPS power connector (4+4 pin)
- Yes
- EPS power connector (8-pin)
- Yes
- Peripheral (Molex) power cable length
- 600,750,900,1050 mm
- SATA power cable length
- 500,600,750,800,900,950,1050 mm
- Number of SATA power connectors
- 16
- Number of PATA power connectors
- 5
- Motherboard power cable length
- 60 cm
- Motherboard power connector
- 20+4 pin ATX
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
- Efficiency
- 94.5%
- Hold time
- 18 ms
- Max output current (+5Vsb)
- 3.5 A
- Max output current (-12V)
- 0.5 A
- Max output current (+5V)
- 25 A
- Max output current (+12V4)
- 45 A
- Max output current (+12V3)
- 45 A
- Max output current (+12V2)
- 40 A
- Max output current (+12V1)
- 40 A
- Max output current (+3.3V)
- 25 A
- Combined power (+5Vsb)
- 17.5 W
- Combined power (-12V)
- 6 W
- Combined power (+5V)
- 150 W
- Combined power (+12V)
- 1600 W
- Combined power (+3.3V)
- 150 W
- Power factor
- 0.99
- Input current
- 15 - 9 A
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 115 - 240 V
- Peak power
- 1700 W
- Total power
- 1600 W
- Sustainability compliance
- Yes
- Sustainability certificates
- ENERGY STAR, ErP, Triman
- Weight
- 2.44 kg
- Height
- 86 mm
- Depth
- 200 mm
- Width
- 150 mm
- Shipping (inner) case width
- 32.5 cm
- Shipping (inner) case length
- 44 cm
- Shipping (inner) case height
- 28.3 cm
- Products per shipping (inner) case
- 2 pc(s)
- Shipping (inner) case net weight
- 14.6 kg
- Warranty period
- 10 year(s)
- Cable tie(s) included
- Yes
- Cables included
- CPU, PCIe, Peripheral (Molex), SATA
- Package weight
- 6.9 kg
- Package height
- 152 mm
- Package depth
- 417 mm
- Package width
- 253 mm
