be quiet!
Pure Power 13 M |
650W power supply unit 20+4 pin ATX ATX Black
Power Supply UnitsAt a glance
Full specification ↓- Motherboard power connector
- 20+4 pin ATX
- Colour
- Black
- Power
- 650 W
- AC input voltage
- 100 - 240 V
- Peak power
- 720 W
- AC input frequency
- 50/60 Hz
£91.45inc. VAT
£76.21 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
be quiet! Pure Power 13 M | 650W, 650 W, 100 - 240 V, 720 W, 50/60 Hz, 10 A, 5 A

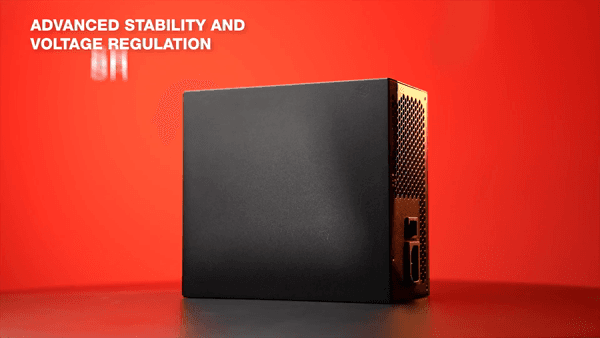

Exceptional quiet, superior features
Pure Power 13 M 650W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 650W offers the best combination of features with outstanding compatibility.
Pure Power 13 M 650W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 650W offers the best combination of features with outstanding compatibility.
Key features
- 80 PLUS® Gold efficiency (up to 94.2%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Exceptionally silent semi-passive 120mm be quiet! fan
- Semi-passive construction for quiet and energy-saving operation
- LLC technology for advanced stability and voltage regulation
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 450W and 2 PCIe 6+2 connectors for high-end GPUs
- Full suite of safety features
Full specification
69 specifications
- Compliance certificates
- BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
- On/off switch
- Yes
- Illumination
- No
- Fan speed
- 0 - 1800 RPM
- Number of fans
- 1 fan(s)
- Fan diameter
- 12 cm
- Cooling type
- Active
- Product colour
- Black
- Operating temperature (T-T)
- 0 - 40 °C
- Cable ties included
- Yes
- Screws included
- Yes
- Mean time between failures (MTBF)
- 100000 h
- Bearing technology
- Rifle
- Noise level
- 30.2 dB
- EPS version
- 2.92
- ATX version
- 3.1
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
- 80 PLUS certification
- 80 PLUS Gold
- Cabling type
- Fully-Modular
- PCI Express connector
- Yes
- CPU power cable length
- 65 cm
- CPU power connector (4+4 pin)
- Yes
- CPU P4 connector (4-pin)
- 3
- PCI Express power connectors (12-pin)
- 1
- PCI Express power connectors (6+2 pin)
- 2
- Peripheral (Molex) power cable length
- 800,950 mm
- Peripheral (Molex) power connectors (4-pin)
- 2
- SATA power cable length
- 500,650,800 mm
- Number of SATA power connectors
- 5
- Motherboard power cable length
- 55 cm
- Motherboard power connector
- 20+4 pin ATX
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
- Efficiency
- 92.8%
- Hold time
- 22.5 ms
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5V)
- 20 A
- Max output current (+12V1)
- 54.1 A
- Max output current (+3.3V)
- 20 A
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5V)
- 120 W
- Combined power (+12V)
- 650 W
- Combined power (+3.3V)
- 120 W
- Number of +12V rail(s)
- 1
- Power Factor Correction (PFC) type
- Active
- Power factor
- 0.98
- Maximum input current (@220V)
- 5 A
- Maximum input current (@110V)
- 10 A
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Peak power
- 720 W
- Total power
- 650 W
- Sustainability certificates
- ENERGY STAR, ErP
- Weight
- 2.32 kg
- Height
- 86 mm
- Depth
- 160 mm
- Width
- 150 mm
- Shipping (inner) case width
- 32.5 cm
- Shipping (inner) case length
- 58 cm
- Shipping (inner) case height
- 23.3 cm
- Shipping (inner) case gross weight
- 20.9 kg
- Products per shipping (inner) case
- 6 pc(s)
- Cables included
- AC, CPU, PCIe, Peripheral (Molex), SATA
- Package weight
- 3.1 kg
- Package height
- 133 mm
- Package depth
- 320 mm
- Package width
- 210 mm
