GIGABYTE

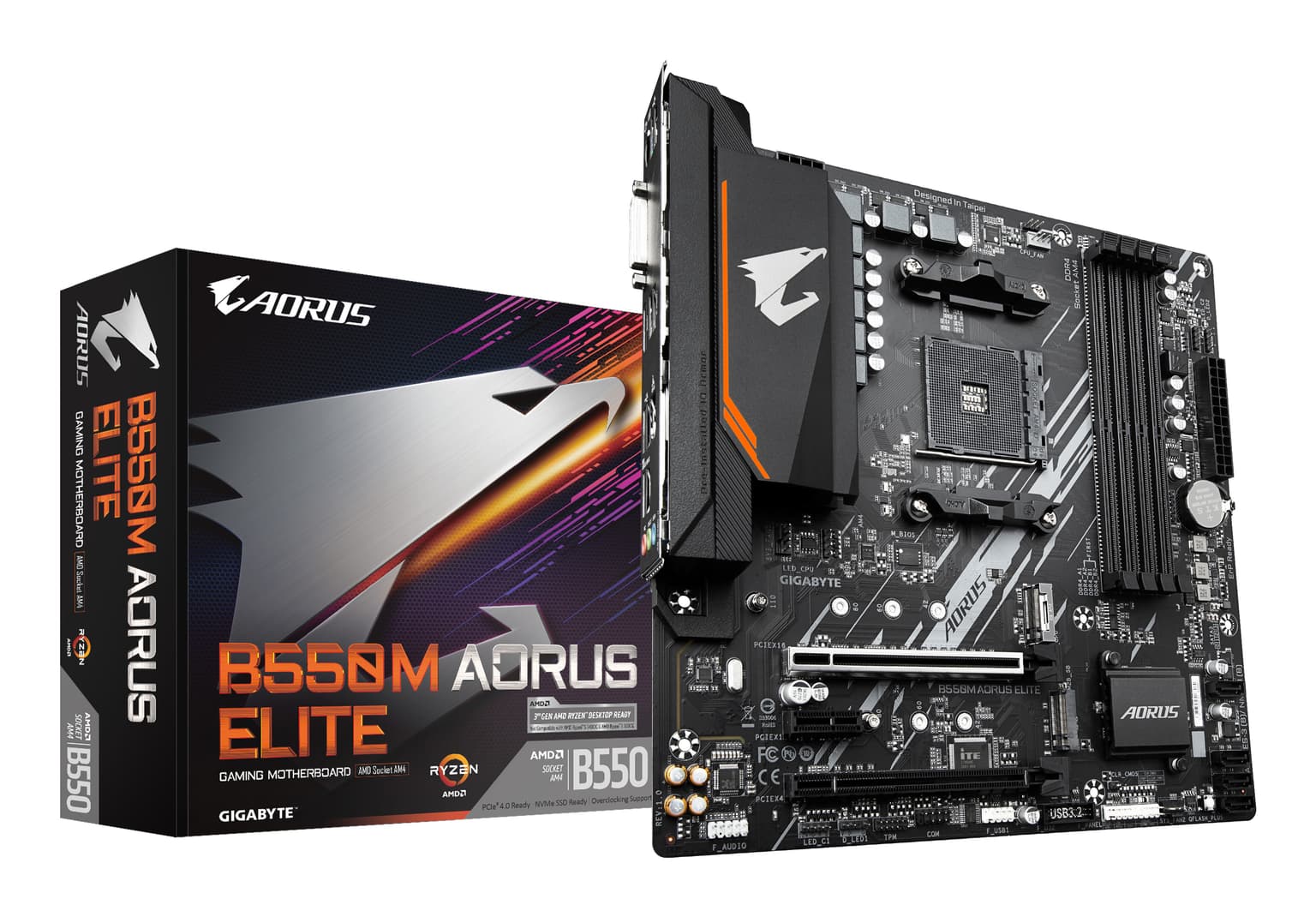

B550M AORUS ELITE Motherboard - AMD Ryzen 5000 CPUs
5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1
MotherboardsAt a glance
Full specification ↓- Motherboard chipset family
- AMD
- CPU socket
- Socket AM4
- Supported memory types
- DDR4-SDRAM
- Max memory
- 128 GB
- Battery
- Lithium-Manganese Dioxide (LiMnO2)
- M.2 slots
- 2
£88.79inc. VAT
£73.99 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
GIGABYTE B550M AORUS ELITE Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, Socket AM4, DDR4-SDRAM, 128 GB
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Key features
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Full specification
99 specifications
- Battery type
- CR2032
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Clear CMOS jumper
- Yes
- ACPI version
- 5.0
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- 2nd M.2 highest PCI Express generation
- 3.0
- 2nd M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 4.0
- 1st M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Cooling type
- Passive
- Power source type
- ATX
- Motherboard chipset family
- AMD
- Motherboard form factor
- micro ATX
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage
- Product colour
- Brown
- Audio output channels
- 7.1 channels
- Audio chip
- Realtek ALC897
- Motherboard chipset
- AMD B550
- DirectX version
- 12.0
- HDCP
- Yes
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- Number of RGB LED pin headers
- 5
- RGB LED pin header
- Yes
- TPM connector
- Yes
- Serial port headers
- 1
- 12V power connector
- Yes
- Number of water pump connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- EPS power connector (8-pin)
- Yes
- Number of chassis fan connectors
- 2
- Number of CPU fan connectors
- 1
- CPU fan connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Front panel connector
- Yes
- Front panel audio connector
- Yes
- Number of SATA III connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 2.0 connectors
- 1
- Maximum internal memory per slot
- 32 GB
- Unbuffered memory
- Yes
- Maximum internal memory
- 128 GB
- Supported memory clock speed (max)
- 4733 MHz
- Supported memory clock speeds
- 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
- ECC сompatibility
- ECC & Non-ECC
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory types
- DDR4-SDRAM
- Wi-Fi
- No
- LAN controller
- Realtek RTL8111H
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- Supported processor sockets
- Socket AM4
- Maximum number of SMP processors
- 1
- Compatible processor series
- AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
- Processor socket
- Socket AM4
- Processor manufacturer
- AMD
- Microphone in
- Yes
- Line-in
- Yes
- Headphone outputs
- 1
- DVI-D ports quantity
- 1
- HDMI version
- 2.1
- HDMI ports quantity
- 1
- PS/2 ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 2.0 ports quantity
- 4
- RAID levels
- 0, 1, 10
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- Warranty period
- 3 year(s)
- Height
- 35 mm
- Depth
- 244 mm
- Width
- 244 mm
- Harmonized System (HS) code
- 84733020
- Country of origin
- China
- Products per shipping (inner) case
- 1 pc(s)
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Batteries included
- Yes
- Screws included
- Yes
- Package weight
- 1.27 kg
- Package height
- 65 mm
- Package depth
- 265 mm
- Package width
- 265 mm
Why choose this
RGB Fusion 2.0 Software
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

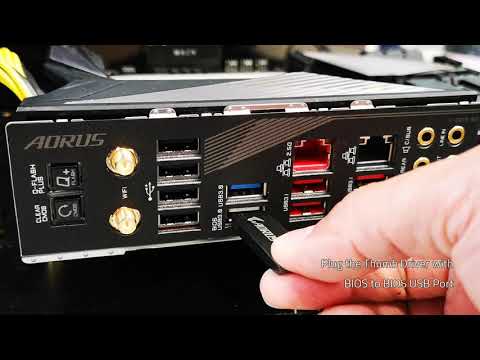

Q-Flash Plus
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
