j5create

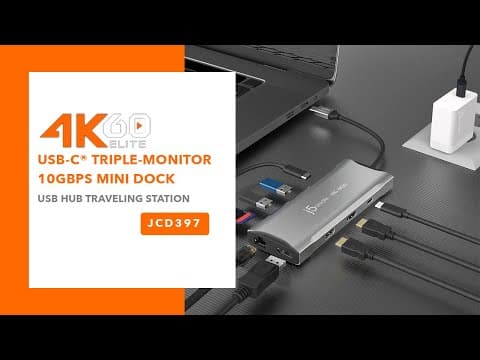

JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock
Laptop Docks & Port ReplicatorsAt a glance
Full specification ↓- Power source type
- USB
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB Power Delivery up to
- 100 W
- DisplayPort version
- 1.4a
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
£77.63inc. VAT
£64.69 ex VAT
Only 4 leftDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 1.4a, 10,100,1000 Mbit/s, Grey
Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.
This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
Key features
- Advanced USB-C® E-Mark chip integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- Backward compatible with USB™ 3.1/3.2
- Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- Charge and power connected laptop and peripherals with 100W Power Delivery
- SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
- Easily add a wired network connectivity with the Gigabit Ethernet port
Full specification
69 specifications
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN
- Yes
- Storage relative humidity (H-H)
- 0 - 85%
- Operating relative humidity (H-H)
- 0 - 85%
- Storage temperature (T-T)
- -17 - 68 °C
- Operating temperature (T-T)
- 0 - 40 °C
- Special features
- Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a Dual 4K HDMI™ output, DP display output.
- Compatibility
- Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
- Country of origin
- China
- Plug and Play
- Yes
- Housing material
- Aluminium
- Charging function
- Yes
- Display modes
- Extended, Mirror, Primary display
- Product colour
- Grey
- Maximum refresh rate
- 240 Hz
- Number of displays supported
- 3
- Maximum digital resolution
- 3840 x 2160 pixels
- HD type
- 4K Ultra HD
- Data transfer rate
- 10 Gbit/s
- Compatible memory cards
- MicroSD (TransFlash), SD
- Card reader integrated
- Yes
- Colour name
- Space Grey
- USB Type-C DisplayPort Alternate Mode
- Yes
- Microphone in
- No
- DisplayPort version
- 1.4a
- DisplayPorts quantity
- 1
- HDMI version
- 2.0
- HDMI ports quantity
- 2
- USB Power Delivery revision
- 3.0
- USB Power Delivery up to
- 100 W
- USB Power Delivery (USB PD)
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Connectivity technology
- Wired
- USB cable length
- 0.2 m
- Power consumption (typical)
- 4.16 W
- Output voltage
- 5 V
- Output current
- 0.79 A
- Power connector
- USB Type-C
- Power source type
- USB
- Mac operating systems supported
- Yes
- Windows operating systems supported
- Yes
- Master (outer) case GTIN (EAN/UPC)
- 24712795086328
- Warranty period
- 2 year(s)
- Weight
- 121.4 g
- Height
- 148 mm
- Depth
- 17 mm
- Width
- 55 mm
- Shipping (inner) case net weight
- 1.06 kg
- Shipping (inner) case height
- 13.7 cm
- Shipping (inner) case length
- 21.2 cm
- Shipping (inner) case width
- 16.5 cm
- Master (outer) case height
- 190 mm
- Master (outer) case width
- 226 mm
- Master (outer) case gross weight
- 3.8 kg
- Master (outer) case length
- 445 mm
- Products per master (outer) case
- 18 pc(s)
- Products per shipping (inner) case
- 6 pc(s)
- Export Control Classification Number (ECCN)
- EAR99
- Cables included
- USB Type-C
- Manual
- Yes
- Quick start guide
- Yes
- Package weight
- 151 g
- Package height
- 22.5 mm
- Package depth
- 125 mm
- Package width
- 193 mm
- Quantity per pack
- 1 pc(s)
