Kingston Technology
KSM32RD4/64HD memory module
64 GB 1 x 64 GB DDR4 3200 MT/s 288-pin DIMM ECC
Memory ModulesAt a glance
Full specification ↓- Memory
- 64 GB
- Memory layout (modules x size)
- 1 x 64 GB
- Memory type
- DDR4
- Memory data transfer rate
- 3200 MT/s
- Memory form factor
- 288-pin DIMM
- Programming power voltage (VPP)
- 2.5 V
£2,099.52inc. VAT
£1,749.60 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product

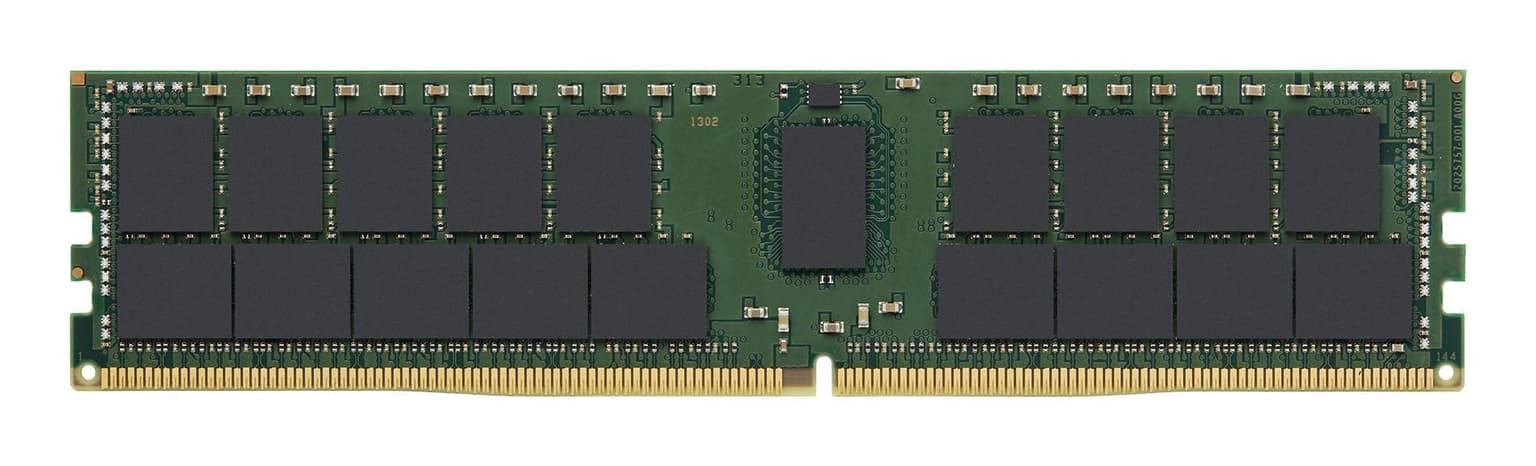

Kingston Technology KSM32RD4/64HD, 64 GB, 1 x 64 GB, DDR4, 288-pin DIMM
Kingston's KSM32RD4/64HD is a 8G x 72-bit (64GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx4, ECC, memory module, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
parity, 2Rx4, ECC, memory module, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Key features
- Power Supply: VDD = 1.2V
- VDDQ = 1.2V
- VPP = 2.5V
- VDDSPD = 2.41V to 2.75V
- Functionality and operations comply with the DDR4 SDRAM datasheet
- 16 internal banks
- Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
- the banks in the same or different bank group accesses are available
- Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
Full specification
22 specifications
- JEDEC standard
- Yes
- SPD profile
- Yes
- Programming power voltage (VPP)
- 2.5 V
- Row active time
- 32 ns
- Row cycle time
- 45.75 ns
- Module configuration
- 8192M x 72
- Memory voltage
- 1.2 V
- Memory ranking
- 2
- Buffered memory type
- Registered (buffered)
- ECC
- Yes
- Memory form factor
- 288-pin DIMM
- Component for
- Server
- Memory data transfer rate
- 3200 MT/s
- Internal memory type
- DDR4
- Memory layout (modules x size)
- 1 x 64 GB
- Internal memory
- 64 GB
- CAS latency
- 22
- Storage temperature (T-T)
- -55 - 100 °C
- Operating temperature (T-T)
- 0 - 85 °C
- Compliance certificates
- RoHS
- Height
- 31.2 mm
- Width
- 133.3 mm
