Kingston Technology
KSM56E46BD8KM-32HA memory module
32 GB 1 x 32 GB DDR5 5600 MT/s 288-pin DIMM ECC
Memory ModulesAt a glance
Full specification ↓- Memory
- 32 GB
- Memory layout (modules x size)
- 1 x 32 GB
- Memory type
- DDR5
- Memory data transfer rate
- 5600 MT/s
- Memory form factor
- 288-pin DIMM
- Colour
- Black, Green
£1,301.76inc. VAT
£1,084.80 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product

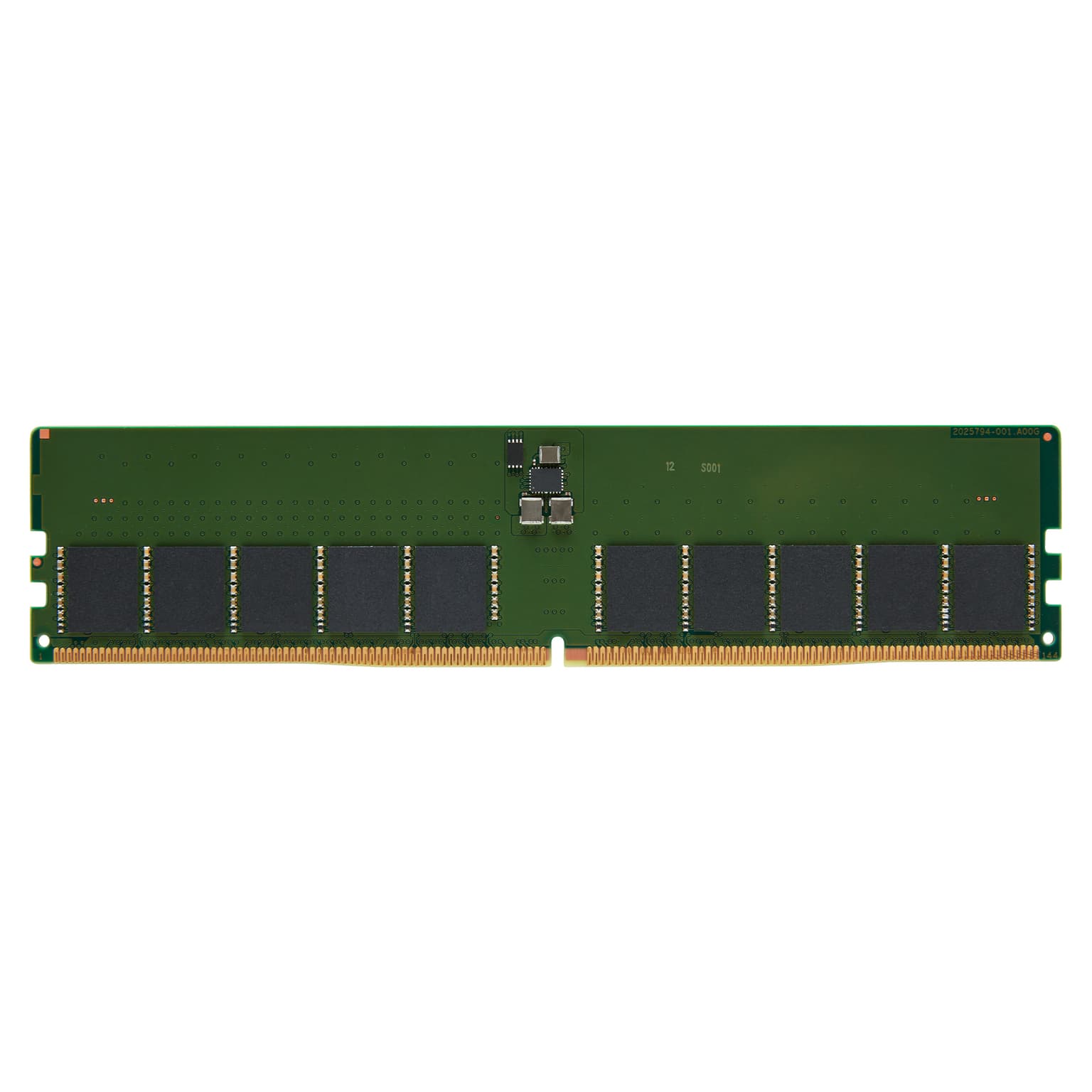

Kingston Technology KSM56E46BD8KM-32HA, 32 GB, 1 x 32 GB, DDR5, 288-pin DIMM, Black, Green
Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Key features
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x72 ECC (x36, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Full specification
29 specifications
- JEDEC standard
- Yes
- Lead plating
- Gold
- Product colour
- Black, Green
- SPD profile
- Yes
- Programming power voltage (VPP)
- 1.8 V
- Row Precharge Time (TRP)
- 16
- Row active time
- 32 ns
- Refresh row cycle time
- 295 ns
- Row cycle time
- 48 ns
- Module configuration
- 4096M x 72
- Memory voltage
- 1.1 V
- Memory ranking
- 2
- Buffered memory type
- Unregistered (unbuffered)
- ECC
- Yes
- Memory form factor
- 288-pin DIMM
- Component for
- Server
- Memory data transfer rate
- 5600 MT/s
- Internal memory type
- DDR5
- Memory layout (modules x size)
- 1 x 32 GB
- Internal memory
- 32 GB
- CAS latency
- 46
- On-Die ECC
- Yes
- Storage temperature (T-T)
- -55 - 100 °C
- Operating temperature (T-T)
- 0 - 95 °C
- Doesn't contain
- Halogen
- Sustainability compliance
- Yes
- Compliance certificates
- RoHS
- Height
- 31.2 mm
- Width
- 133.3 mm
