£80.64
inc. VAT
Lenovo
01CV830 network card Internal Fiber
16000 Mbit/s
Network CardsAt a glance
Full specification ↓- Interface
- Fiber
- Maximum data transfer rate
- 16000 Mbit/s
- Connectivity technology
- Wired
- Host interface
- PCIe
- Colour
- Black, Green, Silver
- Mean time between failures (MTBF)
- 10000000 h
£80.64inc. VAT
£67.20 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
Lenovo 01CV830, Internal, Wired, PCIe, Fiber, 16000 Mbit/s, Black, Green, Silver

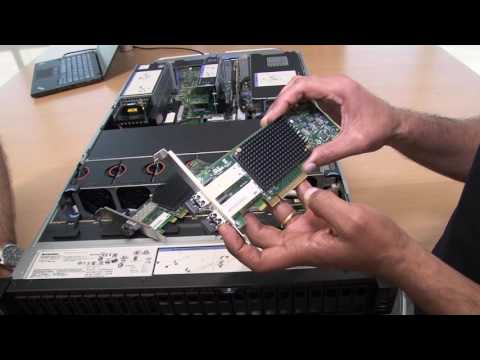

The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
Key features
- Wired
- PCIe 3.0 Fiber
- 16000 Mbit/s
- Internal Component for: Server
Full specification
36 specifications
- Compatible products
- System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4)
- Certification
- AS/NZS CISPR22:2009+A1, Class A Australian EMC Framework (RCM) cUR recognized to CSA 22.2, No. 60950-1-07 EN55022:2010, Class A EN55024:2010 EN55032:2012 EU (CE Mark) FCC Rules, Part 15, Class A Industry Canada, ICES-003, Class A Japan VCCI, Class A Korea MSIP, Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI, Class A UL recognized to UL60950-1 2nd Edition
- Mean time between failures (MTBF)
- 10000000 h
- LED indicators
- Yes
- Hot-Plug support
- Yes
- Hot-swap
- Yes
- Rack mounting
- Yes
- Rack capacity
- 2U
- Internal
- Yes
- Product colour
- Black, Green, Silver
- Component for
- Server
- Maximum operating distance
- 150 m
- Full duplex
- Yes
- Web-based management
- Yes
- Maximum data transfer rate
- 16000 Mbit/s
- Operating relative humidity (H-H)
- 5 - 95%
- Storage temperature (T-T)
- -20 - 85 °C
- Operating temperature (T-T)
- 0 - 55 °C
- PCI-SIG* SR-IOV Capable
- Yes
- PCI version
- 3.0
- Fiber ports quantity
- 1
- Fiber optic connector
- FC, SFP+
- Interface
- Fiber
- Host interface
- PCIe
- Connectivity technology
- Wired
- Server operating systems supported
- Windows Server 2012, Windows Server 2012 R2
- Other operating systems supported
- VMware vSphere ESXi
- Linux operating systems supported
- RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0
- Compliance certificates
- RoHS
- Height
- 69 mm
- Depth
- 168 mm
- Harmonized System (HS) code
- 85176990
- Mounting brackets included
- Yes
- Package type
- Box
- Low-profile bracket
- Yes
- Quantity per pack
- 1 pc(s)
