£291.24
inc. VAT
1 / 2
MSI

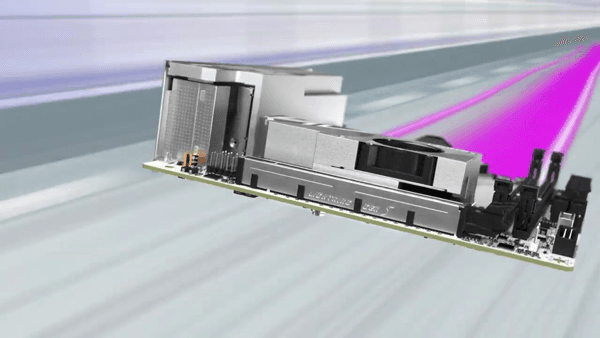

B850I EDGE TI WIFI AMD B850 Socket AM5 mini ITX
MotherboardsAt a glance
Full specification ↓- Chipset
- AMD B850
- CPU socket
- Socket AM5
- Form factor
- mini ITX
- Supported memory types
- DDR5-SDRAM
- Max memory
- 128 GB
- M.2 slots
- 2
£291.24inc. VAT
£242.70 ex VAT
Only 1 leftDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
MSI B850I EDGE TI WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 128 GB
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Wi-Fi 7
The latest wireless solution with a new 160MHz channel, achieving a maximum transmission speed of 2.9Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Wi-Fi 7
The latest wireless solution with a new 160MHz channel, achieving a maximum transmission speed of 2.9Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
Key features
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC mini ITX AMD B850 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
- M.2, NVMe, SATA III RAID support Number of storage drives supported: 4
- 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Full specification
58 specifications
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 5.x) slots
- 1
- Motherboard chipset family
- AMD
- Motherboard form factor
- mini ITX
- Component for
- PC
- Product colour
- Grey
- Audio output channels
- 7.1 channels
- Motherboard chipset
- AMD B850
- On-board graphics card
- No
- RGB LED pin header
- Yes
- TPM connector
- Yes
- Chassis intrusion connector
- Yes
- Number of chassis fan connectors
- 6
- Number of CPU fan connectors
- 1
- CPU fan connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Number of SATA III connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 2.0 connectors
- 1
- Unbuffered memory
- Yes
- Maximum internal memory
- 128 GB
- Supported memory clock speed (max)
- 8200 MHz
- ECC сompatibility
- Non-ECC
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 2
- Supported memory types
- DDR5-SDRAM
- Bluetooth version
- 5.4
- Bluetooth
- Yes
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
- LAN controller
- Realtek RTL8126
- Ethernet interface type
- 5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Quick installation guide
- Yes
- Supported processor sockets
- Socket AM5
- Compatible processor series
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Processor socket
- Socket AM5
- Processor manufacturer
- AMD
- USB connector type
- USB Type-A, USB Type-C
- S/PDIF out port
- Yes
- HDMI version
- 2.1
- HDMI ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- RAID levels
- 0, 1
- RAID support
- Yes
- Number of storage drives supported
- 4
- Supported storage drive interfaces
- M.2, NVMe, SATA III
- Depth
- 170 mm
- Width
- 170 mm
- Cables included
- SATA
- Screws included
- Yes
- Antenna included
- Yes
