MSI
Cubi 5 12M-001BEU 0.66L sized PC Black i7-1255U Intel SoC
PC/Workstation BarebonesAt a glance
Full specification ↓- Chassis type
- 0.66L sized PC
- Colour
- Black
- Processor
- i7-1255U
- Chipset
- Intel SoC
- Product type
- Mini PC barebone
- Storage drive interface
- M.2, Serial ATA III
£699.84inc. VAT
£583.20 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
MSI Cubi 5 12M-001BEU, 0.66L sized PC, Mini PC barebone, Intel SoC, M.2, Serial ATA III, Wi-Fi 6E (802.11ax), 65 W
"Cubi 5 12M: The Energy Efficient Mini-PC
The MSI Cubi 5 12M is a small yet powerful mini-desktop with an incredibly compact 0.7L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi 5 12M i7 1255U BB is a barebone system equipped with an Intel 12th Gen Core i7-1255U processor, but does not include required DDR4 memory, storage, or software. Features Intel Wi-Fi 6E & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 64 GB of system memory (2 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.
Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi 5 12M is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

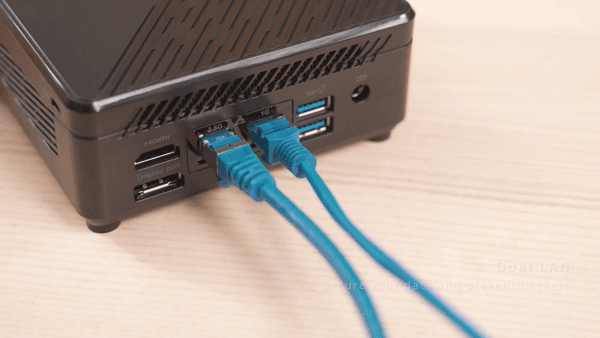

Front & rear I/O include dual Intel 2.5Gbps and 1Gbps ethernet LAN, Mic-in, Headphones-out, Thunderbolt 4 and 4 x USB 3.2 Gen 2 Type-A ports."
The MSI Cubi 5 12M is a small yet powerful mini-desktop with an incredibly compact 0.7L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi 5 12M i7 1255U BB is a barebone system equipped with an Intel 12th Gen Core i7-1255U processor, but does not include required DDR4 memory, storage, or software. Features Intel Wi-Fi 6E & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 64 GB of system memory (2 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.
Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi 5 12M is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.
Front & rear I/O include dual Intel 2.5Gbps and 1Gbps ethernet LAN, Mic-in, Headphones-out, Thunderbolt 4 and 4 x USB 3.2 Gen 2 Type-A ports."
Key features
- Up to 12th Gen Intel® Core™ i7 Processors
- Support up to 8K UHD Display
- Support three displays that allow you to see more and do more
- Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
- Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
Full specification
88 specifications
- Built-in speaker(s)
- No
- Certification
- FCC, CB/CE, UL & CUL, VCCI, RCM
- Product type
- Mini PC barebone
- Panel mounting interface
- 100 x 100 mm
- VESA mounting
- Yes
- LED indicators
- Yes
- On/off switch
- Yes
- Cooling type
- Active
- Product colour
- Black
- Chassis type
- 0.66L sized PC
- Number of M.2 (M) slots
- 1
- Number of displays supported
- 3
- On-board graphics card model
- Intel Iris Xe Graphics
- Graphics card family
- Intel
- On-board graphics card
- Yes
- Maximum internal memory
- 64 GB
- Supported memory clock speeds
- 3200 MHz
- Memory channels
- Dual-channel
- Number of memory slots
- 2
- Memory slots type
- SO-DIMM
- Bluetooth version
- 5.3
- Bluetooth
- Yes
- LAN controller
- Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- WLAN controller model
- Intel Wi-Fi 6E AX211
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Operating relative humidity (H-H)
- 0 - 85%
- Storage temperature (T-T)
- -20 - 60 °C
- Operating temperature (T-T)
- 0 - 35 °C
- Storage relative humidity (H-H)
- 0 - 90%
- Country of origin
- China
- Warranty period
- 2 year(s)
- Number of processors supported
- 1
- Motherboard chipset
- Intel SoC
- Motherboard form factor
- NUC
- DC-in jack
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Thunderbolt 4 ports quantity
- 1
- Combo headphone/mic port
- Yes
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- DVI port
- No
- HDMI version
- 2.0b
- HDMI ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- Number of power supply units
- 1
- Power supply
- 65 W
- Power supply type
- External AC adapter
- Thermal Design Power (TDP)
- 15 W
- Processor cache
- 12 MB
- Efficient-core boost frequency
- 3.5 GHz
- Performance-core boost frequency
- 4.7 GHz
- Processor lithography
- 14 nm
- Built-in processor
- Yes
- Efficient cores
- 8
- Performance cores
- 2
- Processor boost frequency
- 4.7 GHz
- Processor threads
- 12
- Processor cores
- 10
- Processor model
- i7-1255U
- Processor generation
- 12th gen Intel® Core™ i7
- Processor family
- Intel® Core™ i7
- Processor manufacturer
- Intel
- Operating system installed
- No
- Number of storage drives supported
- 2
- NVMe
- Yes
- Storage drive interface
- M.2, Serial ATA III
- SSD form factor
- 2.5"
- Storage drive sizes supported
- 2.5,M.2
- Supported storage drive types
- HDD & SSD
- Package weight
- 1.33 kg
- Package height
- 469 mm
- Package depth
- 506 mm
- Package width
- 221 mm
- Weight
- 590 g
- Height
- 53.7 mm
- Depth
- 124 mm
- Width
- 124 mm
- Keyboard included
- No
- Mouse included
- No
- Display included
- No
- Drivers included
- Yes
- Quick start guide
- Yes
- AC adapter included
- Yes
- Power cord included
- Yes
