£490.09
inc. VAT
1 / 35
MSI
Cubi NUC 1M i7 150U BB (Intel Core 7 150U (Series 1)
NO RAM, NO Storage, NO OS) Barebone, NUC, SFF, Mini Computer, Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
PC/Workstation BarebonesAt a glance
Full specification ↓- Form factor
- NUC
- Processor
- 150U
- Graphics card family
- Intel
- On-board graphics card model
- Intel® Graphics
- Bluetooth
- 5.3
- Chassis type
- 0.84L sized PC
£490.09inc. VAT
£408.41 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
MSI Cubi NUC 1M i7 150U BB (Intel Core 7 150U (Series 1), NO RAM, NO Storage, NO OS) Barebone, NUC, SFF, Mini Computer, Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA, 0.84L sized PC, Mini PC barebone, Intel SoC, DDR5-SDRAM, M.2, Serial ATA, Serial ATA II, Serial ATA III, 120 W
"Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC
The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 1M i7 150U BB configuration is a barebone system equipped with an Intel® Core 7 processor 150U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

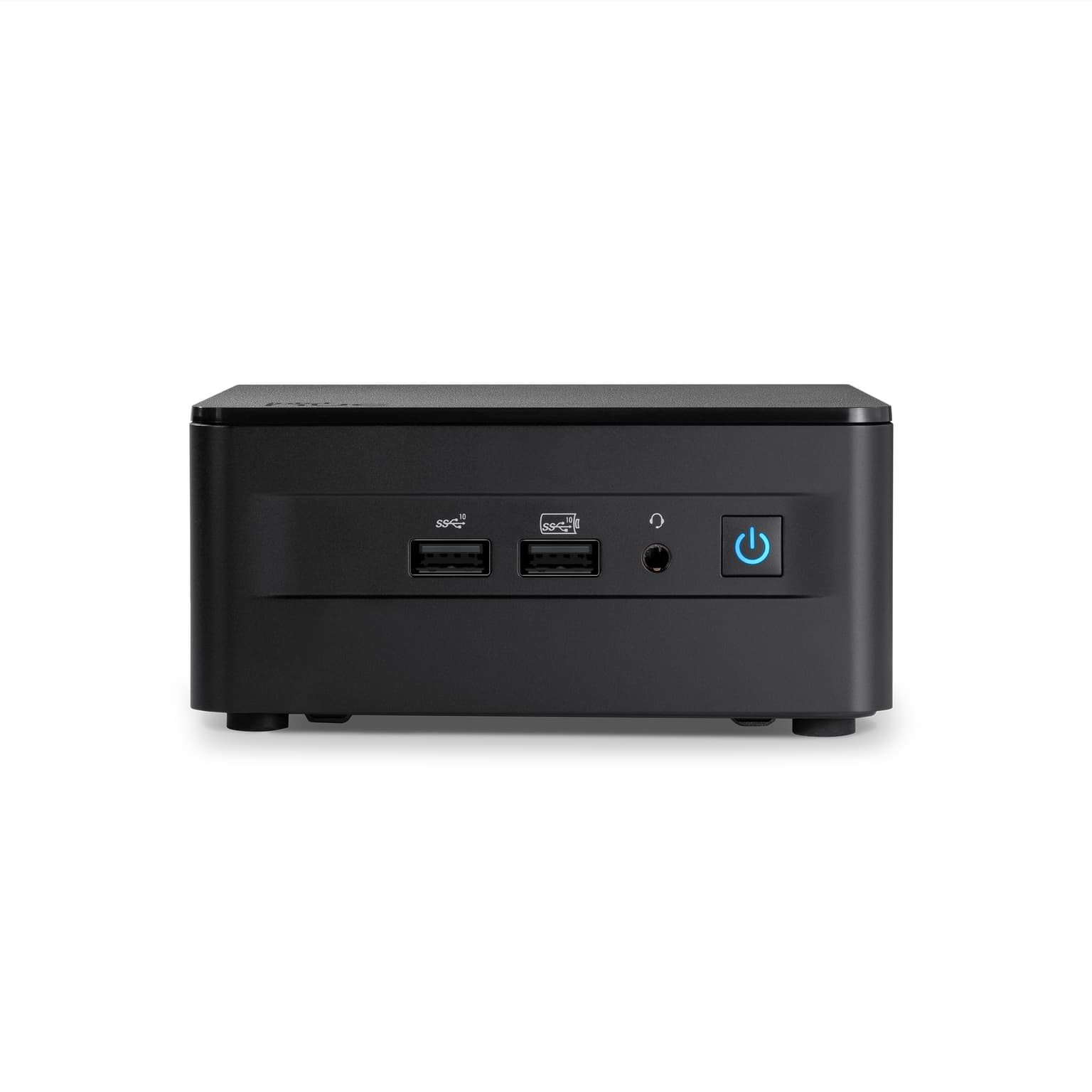

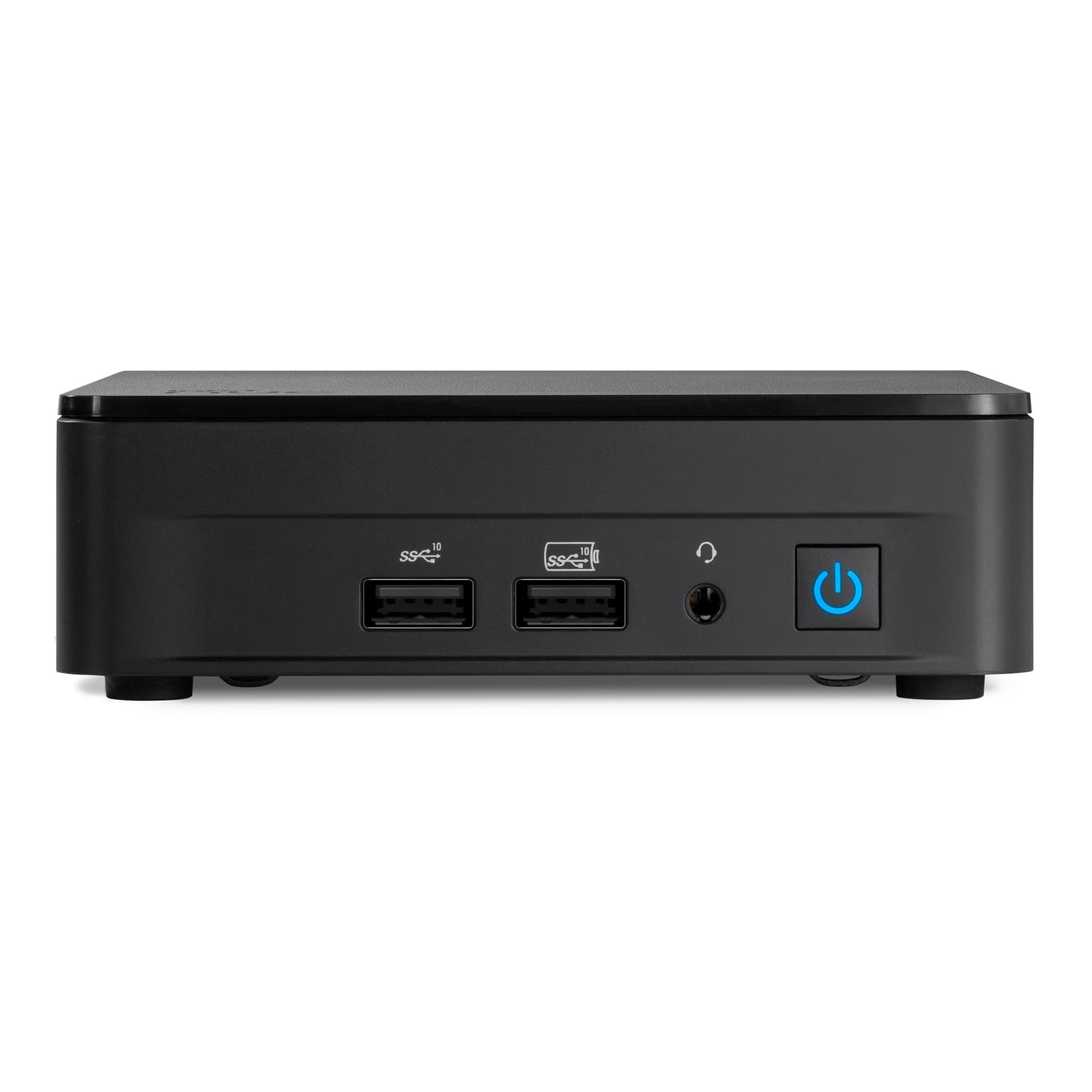

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 1M i7 150U BB configuration is a barebone system equipped with an Intel® Core 7 processor 150U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.
Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
Key features
- INTEL MINI PC - The Cubi NUC 1M is a palm-sized mini PC featuring an Intel® Core 7 processor 150U CPU, NO RAM, NO Storage, NO OS or software pre-installed
- The system supports 64GB of DDR5-5200 memory (2 x SO-DIMM slots) and supports 8K UHD display - ideal for watching movies; Thunderbolt 4 and HDMI 2.1 support quadruple monitor setups
- Supports M.2 SSD storage to ensures faster loading speeds 1x M.2 2280 SSD (PCIE), 1x M.2 2242 SSD (PCIE) and 1 x 2.5" HDD/SSD
Full specification
102 specifications
- Built-in speaker(s)
- No
- Product type
- Mini PC barebone
- Panel mounting interface
- 75 x 75,100 x 100 mm
- VESA mounting
- Yes
- Cable lock slot type
- Kensington
- Cable lock slot
- Yes
- Housing material
- Plastic
- LED indicators
- System
- On/off switch
- Yes
- Cooling type
- Active
- Product colour
- Black
- Chassis type
- 0.84L sized PC
- Number of M.2 (M) slots
- 2
- Number of displays supported
- 4
- On-board graphics card model
- Intel® Graphics
- Graphics card family
- Intel
- On-board graphics card
- Yes
- Maximum internal memory
- 64 GB
- Supported memory clock speeds
- 5200 MHz
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 2
- Memory slots type
- SO-DIMM
- Internal memory installed
- No
- Bluetooth version
- 5.3
- Bluetooth
- Yes
- LAN controller
- Intel I226-V
- Near Field Communication (NFC)
- No
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Copper ethernet cabling technology
- 2.5GBASE-T
- WLAN controller model
- Intel Wi-Fi 6E AX211
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Country of origin
- China
- Introduction year
- 2024
- Introduction month
- July
- Warranty period
- 3 year(s)
- Trusted Platform Module (TPM) version
- 2.0
- Trusted Platform Module (TPM)
- Yes
- Number of processors supported
- 1
- Motherboard chipset
- Intel SoC
- Motherboard form factor
- NUC
- DC-in jack
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- S/PDIF out port
- No
- CardBus PCMCIA slot type
- No
- TV-out
- No
- Serial port via internal header
- No
- Consumer infrared headers
- No
- USB charging
- No
- Thunderbolt 4 ports quantity
- 2
- Combo headphone/mic port
- Yes
- Microphone in
- No
- DVI port
- No
- HDMI version
- 1.4b/2.1
- HDMI ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Number of power supply units
- 1
- Power supply
- 120 W
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power supply type
- External AC adapter
- Processor cache
- 12 MB
- Built-in processor
- Yes
- Efficient-core base frequency
- 1.2 GHz
- Performance-core base frequency
- 1.8 GHz
- Efficient-core Max Turbo Frequency
- 4 GHz
- Performance-core Max Turbo Frequency
- 5.4 GHz
- Efficient cores
- 8
- Performance cores
- 2
- Processor threads
- 12
- Processor cores
- 10
- Processor model
- 150U
- Processor generation
- Intel Core (Series 1)
- Processor family
- Intel Core 7
- Processor manufacturer
- Intel
- Operating system installed
- No
- Windows operating systems supported
- Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro
- Compatible memory cards
- MicroSD (TransFlash)
- Card reader integrated
- Yes
- Number of storage drives supported
- 3
- NVMe
- Yes
- Storage drive interface
- M.2, Serial ATA, Serial ATA II, Serial ATA III
- SSD form factor
- M.2
- Storage drive sizes supported
- 2.5,M.2
- Supported storage drive types
- HDD & SSD
- Sustainability certificates
- ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic
- Package weight
- 1.45 g
- Package height
- 94 mm
- Package depth
- 220 mm
- Package width
- 205 mm
- Weight
- 0.625 g
- Height
- 50.1 mm
- Depth
- 135.6 mm
- Width
- 132.5 mm
- Keyboard included
- No
- Mouse included
- No
- Display included
- No
- Drivers included
- Yes
- Quick start guide
- Yes
- AC adapter included
- Yes
- Power cord included
- Yes
Videos
Why choose this
forest stewardship council (fsc)
Related products

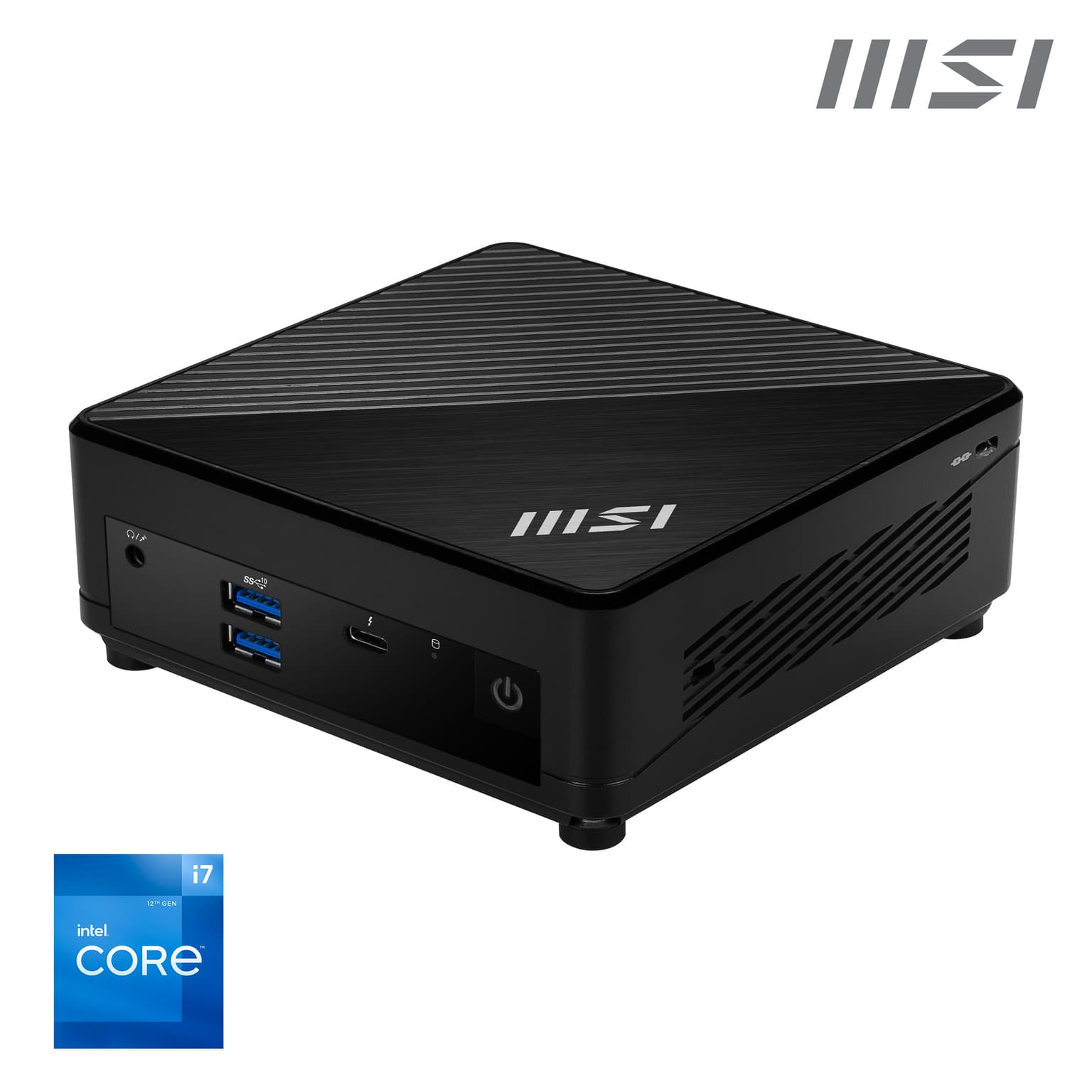

MSI Cubi 5 12M Intel Core i7 1255U Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), IRIS XE Graphics/ThunderBolt 4/Type C/HDMI/DisplayPort/Dual LAN/WiFi 6E/BT 5.3/VESA - 5 12M i7 1255U BB
