PATCHBOX
.one / Cassette / 8RU / UTP / Red
Networking CablesAt a glance
Full specification ↓- Colour
- Red
- Cable length
- 0.8 m
- Cable standard
- Cat6a
- Cable shielding
- U/UTP (UTP)
- Connector 2
- RJ-45
- Power over Ethernet (PoE) type supported
- PoE++ (4PPoE)
£20.16inc. VAT
£16.80 ex VAT
Only 2 leftDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product

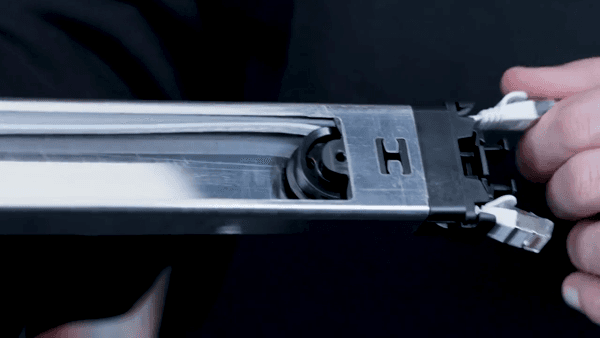

PATCHBOX .one / Cassette / 8RU / UTP / Red, 0.8 m, Cat6a, U/UTP (UTP), RJ-45, RJ-45, Red
The Ultimate Cable Management Solution
The patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.
Build Your Ideal Rack Setup
Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.
Modular, Replaceable, Scalable
Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.
High-Performance Ethernet
Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).
Color-Coded for Clarity
With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.
Three Length Options
Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.
The patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.
Build Your Ideal Rack Setup
Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.
Modular, Replaceable, Scalable
Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.
High-Performance Ethernet
Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).
Color-Coded for Clarity
With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.
Three Length Options
Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.
Key features
- Keep your rack forever organized
- Up to 10x faster installation & troubleshooting
- Up to 50% more space
- ISO/IEC 11801 Channel Class Ea
- 10-Year Warranty on patchbox.one & Cables
Full specification
33 specifications
- Certification
- ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel
- Country of origin
- Hungary
- Power over Ethernet (PoE) type supported
- PoE++ (4PPoE)
- Power over Ethernet (PoE)
- Yes
- Bend radius (min)
- 1.2 cm
- Data transfer rate
- 10000 Mbit/s
- AWG wire size
- 30
- Networking standards
- IEEE 802.3bt
- Conductor material
- Copper
- Cable shape
- Flat
- Jacket material
- Polyvinyl chloride (PVC)
- Connector contacts plating
- Gold
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Connector 2
- RJ-45
- Connector 1
- RJ-45
- Cable shielding
- U/UTP (UTP)
- Cable standard
- Cat6a
- Cable length
- 0.8 m
- Product colour
- Red
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- -20 - 60 °C
- Cables included
- LAN (RJ-45)
- Weight
- 150 g
- Height
- 40 mm
- Depth
- 365 mm
- Width
- 18 mm
- Packaging content
- 1 x patchbox.one / Cassette / 8RU / UTP / Red
- Quantity per pack
- 1 pc(s)
- Package weight
- 200 g
- Package height
- 50 mm
- Package depth
- 28 mm
- Package width
- 433 mm
Downloads
Why choose this
Replace Cassettes in Seconds
Hot-swappable cassettes let you adapt or upgrade instantly, with zero downtime.
Customize to the Last Detail
Cable type, length, color, and connector—everything’s tailored to your setup.
Cut Maintenance Time in Half
Pre-routed and retractable, the cassettes reduce service times dramatically.
Color-Coded for Instant Recognition
Easily identify ports, devices, or networks at a glance with 8 cable colors.
