£24.48
inc. VAT
1 / 3
StarTech.com
Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter
1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black
Video Cable AdaptersAt a glance
Full specification ↓- Connector 1
- Mini DisplayPort
- DisplayPort version
- 1.2
- Colour
- Black
- Cable length
- 0.18 m
- Connector 1 gender
- Male
- Connector 2 form factor
- Straight
£24.48inc. VAT
£20.40 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
StarTech.com Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black, 0.18 m, Mini DisplayPort, VGA (D-Sub), Male, Female, Straight
Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or Projector
The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.
With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.
With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Key features
- MINI DISPLAYPORT TO VGA ADAPTER: Mini DisplayPort 1.2 (HBR2) video adapter connects a VGA display or projector supporting 1920x1200 & 1080p at 60Hz; EDID & DDC pass-through ensures compatibility between source & display
- HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using the mDP to VGA adapter dongle; Compact design makes it ideal for travel to & from office/home / 7" (18cm) cable
- SCREW LOCKING VGA: Mini DisplayPort to VGA display adapter supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection from VGA displays and projectors / Tested with VGA cables up to 25'
Full specification
34 specifications
- Certification
- RoHS, CE, FCC
- Compliance certificates
- CE, RoHS
- Converter type
- Active video converter
- Plug and Play
- Yes
- Chipset
- Analogix - ANX9833
- Product colour
- Black
- HBR2 support
- Yes
- Maximum refresh rate
- 60 Hz
- Supported video modes
- 720p, 1080p
- Maximum resolution
- 1920 x 1200 pixels
- DisplayPort version
- 1.2
- Connector 2 gender
- Female
- Connector 1 gender
- Male
- Connector 2
- VGA (D-Sub)
- Connector 1
- Mini DisplayPort
- Cable length
- 0.18 m
- Connector 2 form factor
- Straight
- Connector 1 form factor
- Straight
- Operating relative humidity (H-H)
- 10 - 85%
- Storage temperature (T-T)
- -10 - 80 °C
- Operating temperature (T-T)
- 0 - 70 °C
- Height
- 8 mm
- Depth
- 220 mm
- Width
- 35 mm
- Weight
- 27 g
- Products per master (outer) case
- 150 pc(s)
- Master (outer) case height
- 214 mm
- Master (outer) case length
- 508 mm
- Master (outer) case width
- 328 mm
- Harmonized System (HS) code
- 84733080
- Package weight
- 36 g
- Package height
- 18 mm
- Package depth
- 220 mm
- Package width
- 200 mm
Downloads
Related products

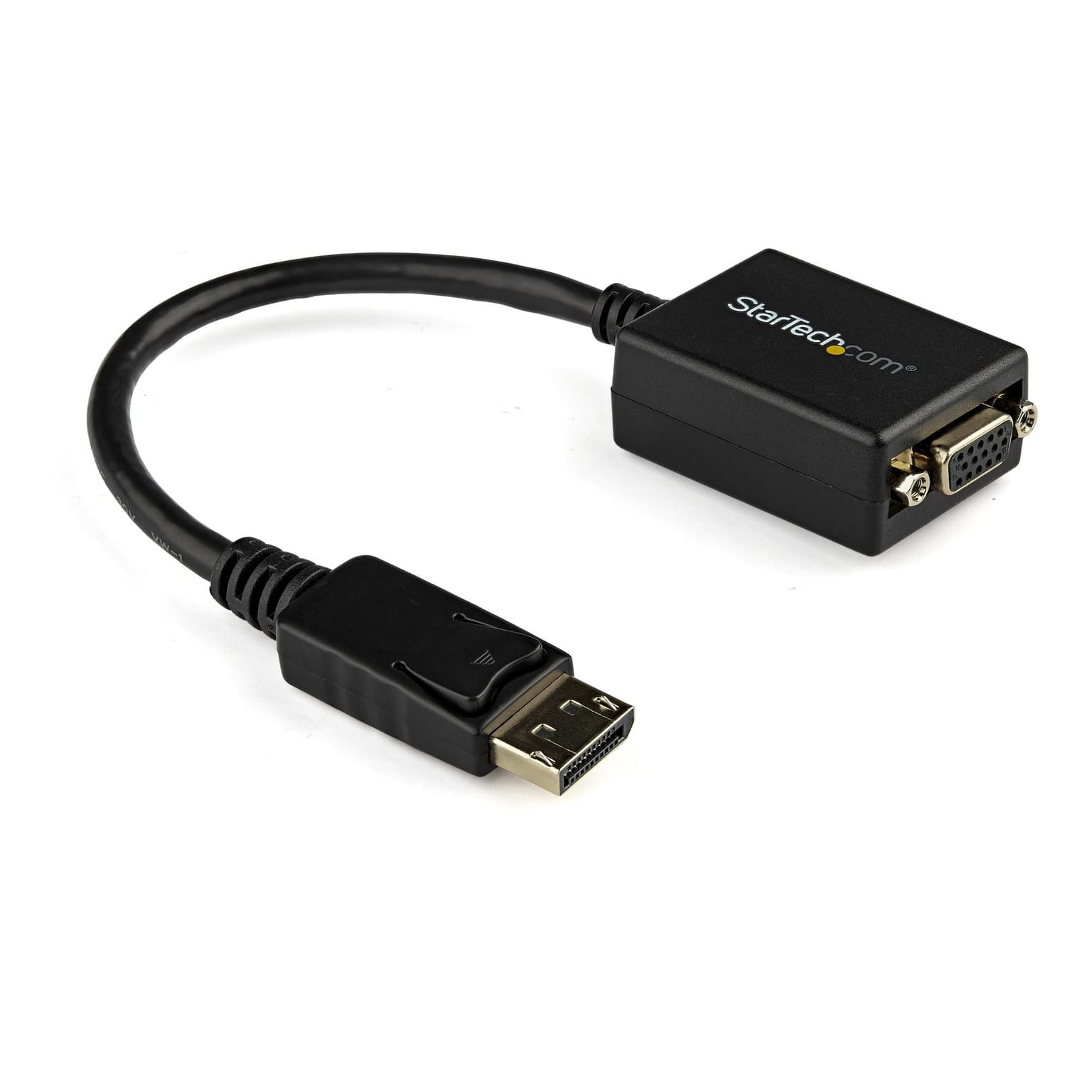

StarTech.com DisplayPort to VGA Adapter - Active DP to VGA Converter - 1080p Video - DisplayPort Certified - DP/DP++ Source to VGA Monitor Cable Adapter Dongle - Latching DP Connector

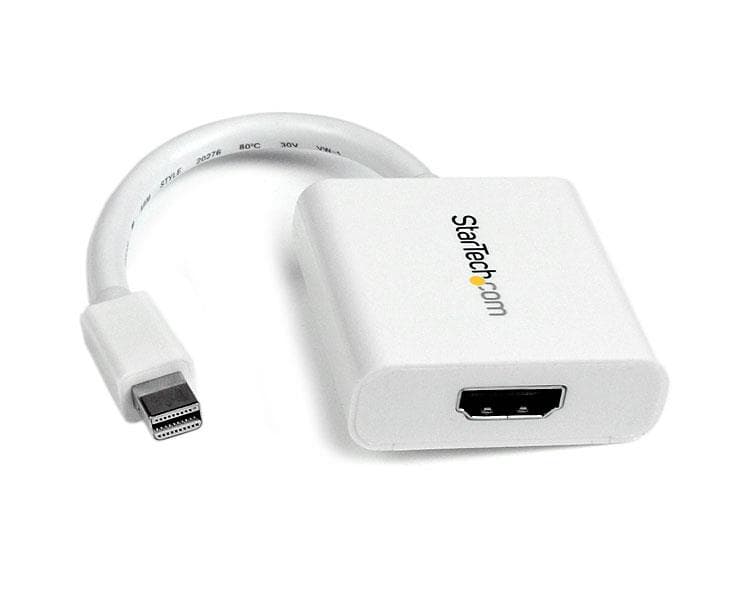

StarTech.com Mini DisplayPort to HDMI Adapter - mDP to HDMI Video Converter - 1080p - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/Display/TV - Passive mDP 1.2 to HDMI Dongle - White
