TP-Link

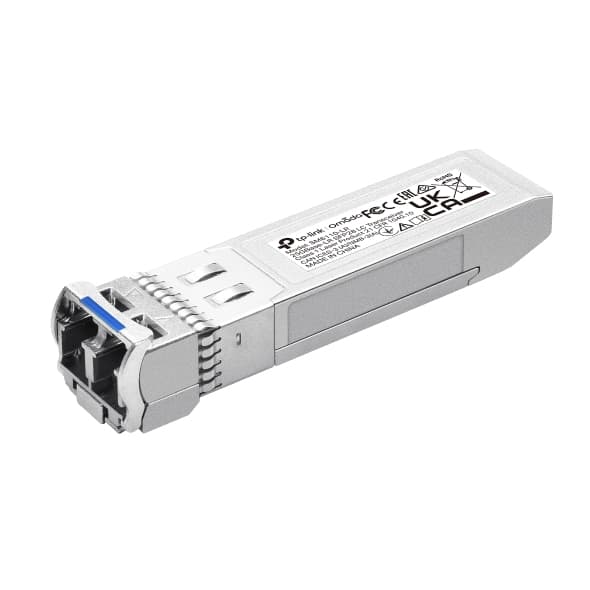

Omada SM6110-LR network transceiver module Fiber optic
25780 Mbit/s SFP+ 1310 nm
Network Transceiver ModulesAt a glance
Full specification ↓- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 25780 Mbit/s
- Interface type
- SFP+
- Wavelength
- 1310 nm
- Fiber cable diameters supported (core/cladding)
- 9/125 µm
- Maximum transfer distance
- 10000 m
£76.19inc. VAT
£63.49 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
TP-Link Omada SM6110-LR, Fiber optic, 25780 Mbit/s, SFP+, 9/125 µm, 10000 m, 1310 nm
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Key features
- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X
Full specification
18 specifications
- Hot-swap
- Yes
- Hot-Plug support
- Yes
- Product colour
- Grey
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 85 °C
- Maximum operating temperature
- 70 °C
- Minimum operating temperature
- 0 °C
- Wavelength
- 1310 nm
- Maximum transfer distance
- 10000 m
- Fiber cable diameters supported (core/cladding)
- 9/125 µm
- Interface type
- SFP+
- Maximum data transfer rate
- 25780 Mbit/s
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Height
- 12 mm
- Depth
- 14 mm
- Width
- 57 mm
- Quantity per pack
- 1 pc(s)
Part of the range
- Family
- Omada
