Vivolink
PROHDMIOP20AM-DRUM HDMI cable
20 m HDMI Type A (Standard) Black
HDMI CablesAt a glance
Full specification ↓- Cable length
- 20 m
- Connector 2
- HDMI Type A (Standard)
- Colour
- Black
- Resolution
- 4096 x 2160 pixels
- Refresh rate
- 60 Hz
- Colour depth
- 16 bit
£364.44inc. VAT
£303.70 ex VAT
Only 1 leftDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
Vivolink PROHDMIOP20AM-DRUM, 20 m, HDMI Type A (Standard), HDMI Type A (Standard), 4096 x 2160 pixels, 3D, Black

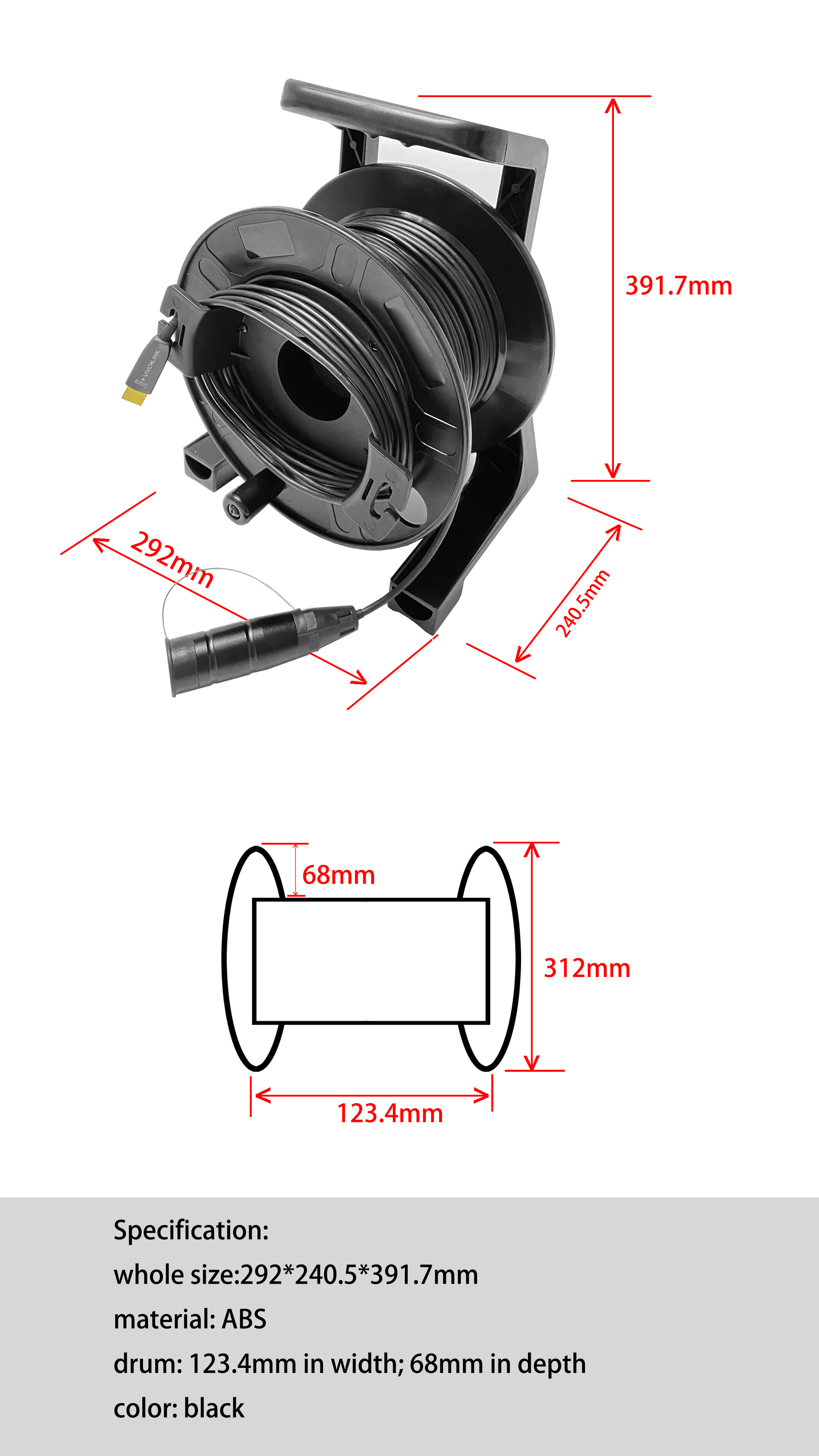

Vivolink Optical HDMI 4K Armored Cable, supplied on a robust 20-meter cable drum designed for safe transport and efficient handling.
The drum features an extra-high outer flange, making it easier to reel the cable in evenly and without slipping. An integrated connector compartment allows the HDMI connector to be securely stored inside the drum during reeling, preventing the cable head from rotating freely and reducing strain on the connector.
This thoughtful drum design improves handling during installation, transport, and storage, while helping to protect the cable and connector from damage.
HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.
Typical installation:
Places where high resolution is required on long distance.
Tensile Strength (Pull resistance): 20 kg.
Maximum pressure load on cable: 305 kg.
The drum features an extra-high outer flange, making it easier to reel the cable in evenly and without slipping. An integrated connector compartment allows the HDMI connector to be securely stored inside the drum during reeling, preventing the cable head from rotating freely and reducing strain on the connector.
This thoughtful drum design improves handling during installation, transport, and storage, while helping to protect the cable and connector from damage.
HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.
Typical installation:
Places where high resolution is required on long distance.
Tensile Strength (Pull resistance): 20 kg.
Maximum pressure load on cable: 305 kg.
Key features
- Cable use Class-1 Professional laser with 12 years warranty
- CEC & ARC Support
- Cable is built with military standard optical fiber
- Power consumption only 0,35W
- Optic fiber is covered with copper wires
- Kevlar filling inside makes the cable extremely strong and robust
- Lock ring in cable head secure no damage by pulling in cable
Full specification
30 specifications
- Plug and Play
- Yes
- Colour depth
- 16 bit
- Cable material
- Fiber optic
- Connector contacts plating
- Gold
- Maximum refresh rate
- 60 Hz
- Maximum resolution
- 4096 x 2160 pixels
- High Dynamic Range (HDR) technology
- High Dynamic Range 10 (HDR10)
- High Dynamic Range (HDR) supported
- Yes
- Data transfer rate
- 18 Gbit/s
- HDCP version
- 2.2
- HDCP
- Yes
- HDMI Ethernet channel
- Yes
- Dolby technologies
- DTS-HD Master Audio
- Supported video modes
- 2160p
- Supported graphics resolutions
- 4096 x 2160
- 3D
- Yes
- HDMI version
- 2.0
- Product colour
- Black
- Connector 2 form factor
- Straight
- Connector 1 form factor
- Straight
- Connector 2 gender
- Male
- Connector 1 gender
- Male
- Connector 2
- HDMI Type A (Standard)
- Connector 1
- HDMI Type A (Standard)
- Cable length
- 20 m
- Operating temperature (T-T)
- -20 - 60 °C
- Weight
- 3.8 kg
- Cable diameter
- 5 mm
- Quantity per pack
- 1 pc(s)
- Package weight
- 5 kg
