£187.68
inc. VAT
1 / 5
Vivolink
VLUSB3EXT100D KVM extender
KVM ExtendersAt a glance
Full specification ↓- Connectivity technology
- Wired
- Maximum transfer distance
- 100 m
- Cable types supported
- Cat7
- Colour
- Black
- Material
- Metal
- LED indicators
- Power
£187.68inc. VAT
£156.40 ex VAT
In stockDispatched from UK distributor stock
1
- UK delivery direct from distributor stock. Delivery details
- 14-day returns under your statutory cancellation rights. Returns policy
- Secure checkout powered by Stripe.
About this product
Vivolink VLUSB3EXT100D, Wired, 100 m, Cat7, Black, Metal, Power
The VLUSB3EXT100D is a receiver (Rx) that can be used to connect up to 4 USB devices like: camera, speaker, touch screen or other USB3.0 device and signal is transfered via network cable to computer. System builts on HDBaseT 3.0 and supports data speed up to 5Gbit.

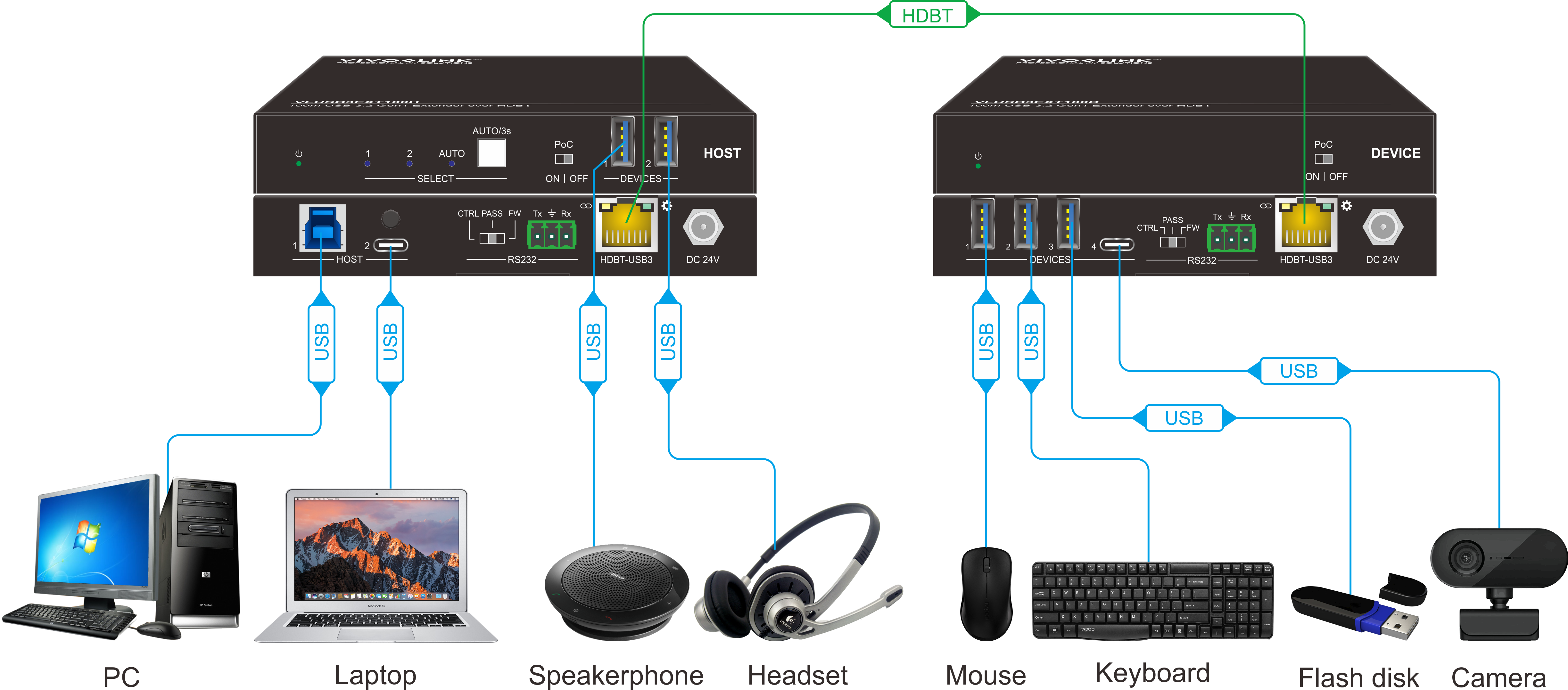

Typical installation:
Meeting rooms
It has four USB ports that can extend USB 3.0 signal up to 100 meters over a Cat5e/6/7 cable.
The transmitter is powered by the computer and the power supply is at the remote receiver that’s helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mouses, cameras, or printers, etc.
Extender is build in a durable metal housing and the compact size enables space-saving installation.
Typical installation:
Meeting rooms
It has four USB ports that can extend USB 3.0 signal up to 100 meters over a Cat5e/6/7 cable.
The transmitter is powered by the computer and the power supply is at the remote receiver that’s helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mouses, cameras, or printers, etc.
Extender is build in a durable metal housing and the compact size enables space-saving installation.
Key features
- Super Speed USB 3.0 compliant, the transfer data rate is 5 Gbit
- Supports 4 devices with 1 USB-C
- Supports 100m extension
- Supports 3A, max 1.7A one port
- Supports two way PoC & PoC control
- RS232 congurable for control & pass through
Full specification
24 specifications
- LED indicators
- Power
- Plug and Play
- Yes
- Easy to install
- Yes
- Material
- Metal
- Product colour
- Black
- Cable types supported
- Cat7
- Maximum transfer distance
- 100 m
- Connectivity technology
- Wired
- Storage temperature (T-T)
- -25 - 70 °C
- Operating temperature (T-T)
- -10 - 55 °C
- RS-232 ports
- 1
- RJ-45 ports quantity
- 1
- AC adapter output current
- 1.5 A
- AC adapter output voltage
- 24 V
- AC input frequency
- 50 Hz
- RJ-45 ports quantity (receiver)
- 1
- Weight
- 227 g
- RJ-45 ports quantity (transmitter)
- 1
- Receiver height
- 2.15 cm
- Receiver depth
- 10.5 cm
- Receiver width
- 13.3 cm
- Manual
- Yes
- AC adapter included
- Yes
- Package weight
- 438 g
Delivery & returns
- Delivery
- UK delivery direct from distributor stock. Delivery details
- Returns
- 14 days to change your mind under your statutory cancellation rights. Returns policy
- Warranty
- 36 months
- Payment
- Secure checkout powered by Stripe.
