0070-24455 Signage Display

Welcome to the Future of Display Technology: Ernitec Video Wall Display.
Elevate your visual experience with the Ernitec Video Wall Display 0070. Designed for versatility and performance, this display features a sleek 1.8mm bexel that seamlessly integrates into any environment, making it perfect for control rooms, retail spaces, and large venues.
Key Features:
Stunning Visual Clarity: Enjoy vibrant colors and sharp images that captivate your audience.
Modular Design:
The 1.8mm bexel allows for easy installation and configuration, enabling you to create the perfect video wall setup tailored to your needs.
Robust Performance: Built to handle demanding applications, this display ensures reliability and longevity, making it a smart investment for your display needs.
Transform your space with the Ernitec Video Wall Display and experience the power of dynamic visual communication. Whether for presentations, advertising, or immersive experiences, this display is your gateway to impact storytelling.
Bezel-free native 1080P, 4K
Customized resolution LED video wall system.
Ultimate visual performance with 14 bit grey scale,
24/7 reliability, 50,000hours lifespan at least.
Dot by dot calibration ensures excellent color and brightness uniformity.
Low power consumption, Environment friendly.
Fan-less design, no noise.
DISPLAY CHARACTERISTICS
Screen Size 55'’
Resolution 1920 × 1080 (Up to 3840×2160 for 2*2 installation )
Display Mode 16:9
Bezel(U/L),(R/B) 0.7mm(U/L), 0.8mm(R/B)
Contrast ratio 4000:1
Display Color 8 bit - 16.7M
Pixel Pitch(mm) 0.248(H)×0.248(V)
Brightness(nits) 500cd/
Maximum Pixel Frequency 148.5MHz
Viewing Angle 178(H) /178(V)
Response Time 5ms

Through Video Wall Image Creation (VIC) technology, color and
brightness differences are compensated in circuit part with an
algorithm to make the panels into a same characteristic so that
each video wall maintains the consistent white balance.
Video Wall Image Creation
The 0070-24455 includes an image improvement algorithm.
that can adjust to objects located in the boundary of bezel.
for a seamless viewing experience.
Image Gap Reduction
Power AC 100-240V
∼(+/-10%), 50/60Hz
Max:198W, Typ.:136W, BTU(Max):524.14W
Ports:
1 x HDMI In
1 x VGA In
1 x DP In
1 x USB
1 x RJ 45 In
2 x RJ 45 Out
1 x BNC In
1 x BNC Out
1 x DVI In

Mechanical Specification
1213.5 x 684.3 x 96.6mm
1355 X 809 X 320mm
-10∼55°C
50000Hours

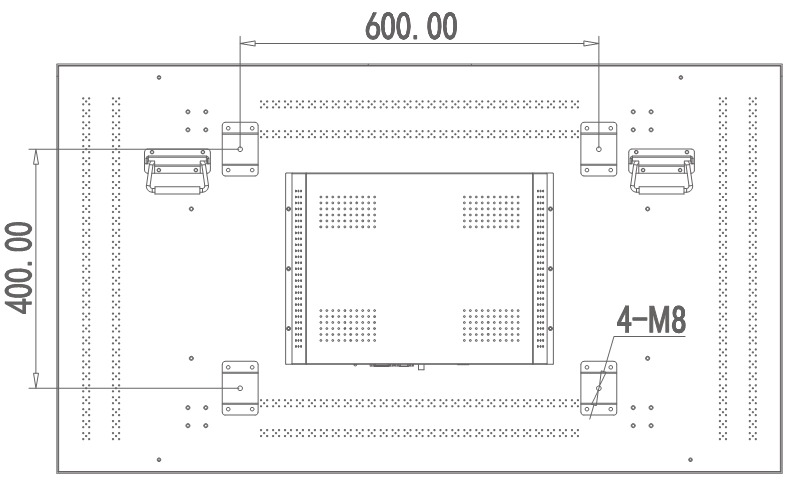

VESA size: 600x400
INCLUDED ACCESSORIES Quick Setup Guide,Cat5/6, Software CD, Power Cord
